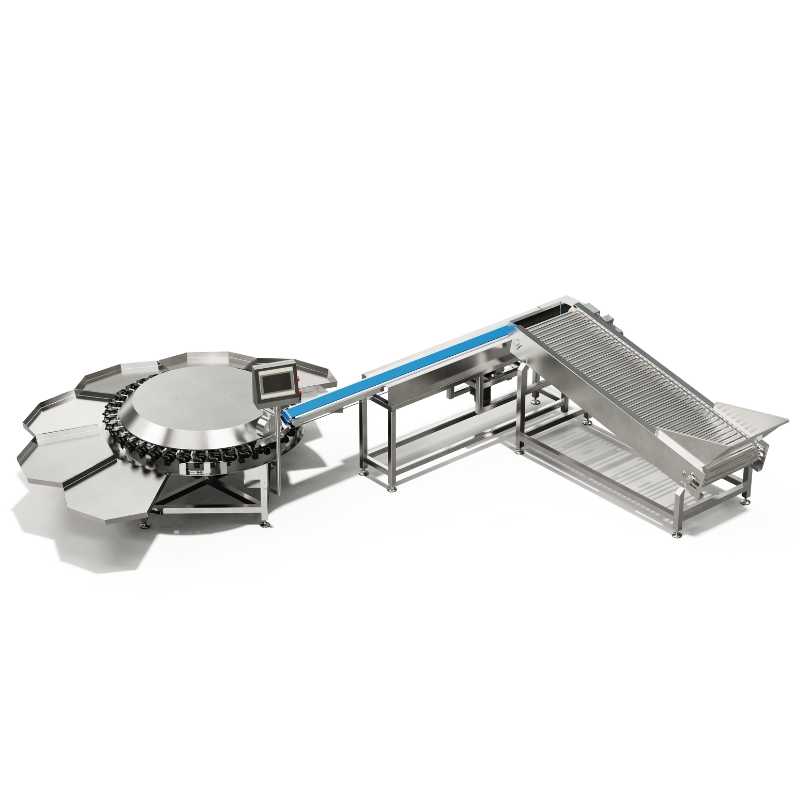

Automatic Fruit Sorting Machine

Automatic Fruit Sorting Machine is suitable for weight grading similarity round vegetables and fruit. The checking range is less than 1000 g of vegetables and fruit products.

The equipment is for the primary step of production and processing of the food industry.

It’s an excellent choice for weighing and grading vegetables and fruit.

  • Compact design, small footprint
  • Drop rejection
  • The belt is installed and removed quickly
  • Multiple machines can be controlled and managed centrally
  • Economical and efficient, easy maintenance.

Specifications

Model: YGW-YPF-1
Checking Range: 1000g
Weighing Accuracy: ±1g ~ ±3g
Minimum Scale: 0.1g
Working Speed: 300pcs/min
Product Size: ≤Ф140mm
Tray Size: Ф140mm

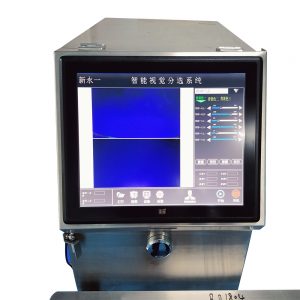

Operation: 10-inch colored touchscreen

Power Supply: AC220/110V±10% 50Hz/60Hz
Rejector: Drop
Control Module: High-Speed A/D Sampling Module
Product Preset: 100
Operating Requirement: Temperature: 0℃~40℃; Humidity: 30%~95%
Main Structure: SUS304 Stainless Steel

Key Features

High-speed and high weighing accuracy
The weighing accuracy of the sorting machine can reach ±1g ~ ±3g. The working speed can reach 300pcs/min. You needn’t calibrate the operating system of equipment often. The equipment can stay stable.

Long lifespan
The automatic fruit sorting machine weight sorting up to 18000 pieces/hour.

Multiple waterproof protection
The sorting machine is made of SUS304 stainless steel. The professional waterproof level is up to IP65.

Store and export data easily
The vegetable sorting machine can record 365 days of production data. The Bluetooth connection function is optional to choose from. You can export data to a USB easily and connect external devices. (Such as labeling machines, printers, scanners, computers, etc.)
