Foodman Compact Economical X Ray Inspection System for Small Items FXR-2417K100

The X-ray inspection system uses penetration to select the contaminants, including all kinds of metals (Fe, non-fe, stainless steel), bones, glass, ceramic, stones, sand, rigid plastic, desiccant, etc.

The food x-ray machine is widely used in foreign body detection in Food Packaging, pharmaceuticals, Light Industries, etc.

The food x-ray inspection system equipment is suitable for all kinds of packaging products. (Cheese, biscuits, potato chips, infants, seasonings, spices, meatballs and fish balls, meat and poultry, sausages, bagged bar coffee, solid drinks, etc.)

  • User-friendly interface, Pre-installed Windows system
  • More than 300 product presets
  • Leakage less than 1 μSv/h
  • High configuration & stability with well-known components

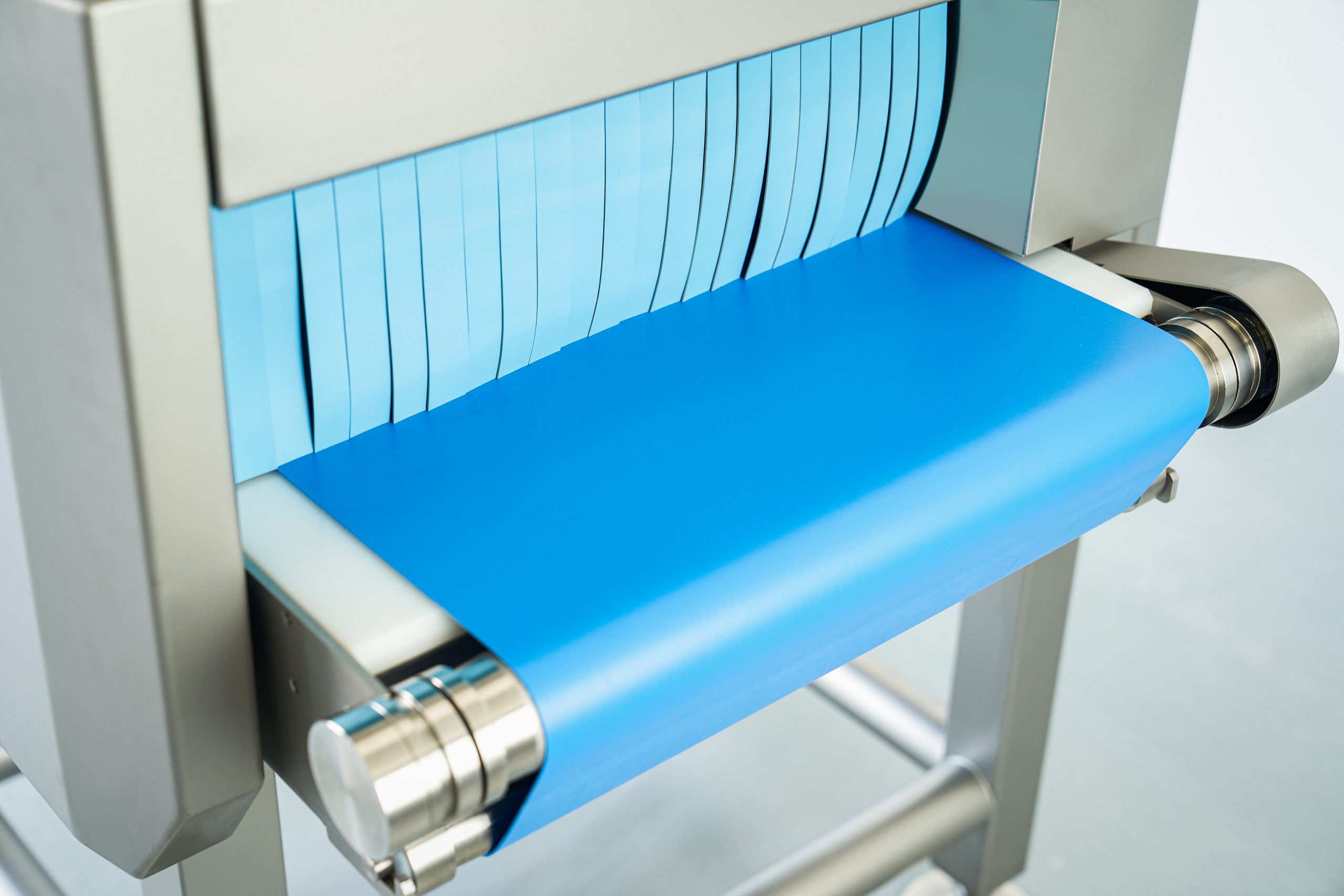

  • The belt easy to clean, maintain and remove
  • All-in-one solution, customizable

Specifications

Model: FXR-2417K100
X-Ray Output: 100KV
Inspection Width: 240mm
Inspection Height: 170mm
Speed Range: 10-70m/min
X-Ray Leakage: <1 uSv/h(CE Standard)
Reaction to Defectives: Sound and indicator, stopping machine, rejector

Sensitivity: Stainless steel ball Φ0.3mm, Stainless steel wire Φ0.2*2mm, ceramics Φ1.0, glass Φ1.0
Display Screen: 17 inches colored touch screen
Interfaces: LAN Port, USB Port
Environment: Temperature -10℃-40℃, Humidity: 30%-90%
Body Material: Stainless Steel SUS304

Key Features

More specialized detecting

The x-ray inspection system is specialized for detecting small packaged products. More professional and accurate.

Favorable price and high configuration

The food x-ray machine with a high configuration is at a good price level. Its parts configuration adopts the industry’s first-line brand. And the quality is guaranteed.

Fast delivery

The electronic components of the x-ray inspection system are in stock. We will arrange the delivery time as soon as possible. And the delivery is 2 weeks.

Auto-Learn feature

The 17-inch full-color touch screen is easy to use. The automatic learning function includes automatically setting parameters and automatically saving detected pictures. It can be used for product quality traceability and control.

The first design to separate the light source from the appliances

We are the first industry creative that separates light sources and electrical appliances. So the powerful air conditioning system and independent air supply system can be applied to various harsh environments.

Remote Assistance

We are the first company in the industry to develop and adopt remote operation functions. It can remote assist in solving problems and improve working efficiency. Don’t worry about after-sales issues.

Wide range of voltage control

The high voltage level is without additional cost. The adjustable range (75KV-100KV) is wide and the accuracy is higher.
