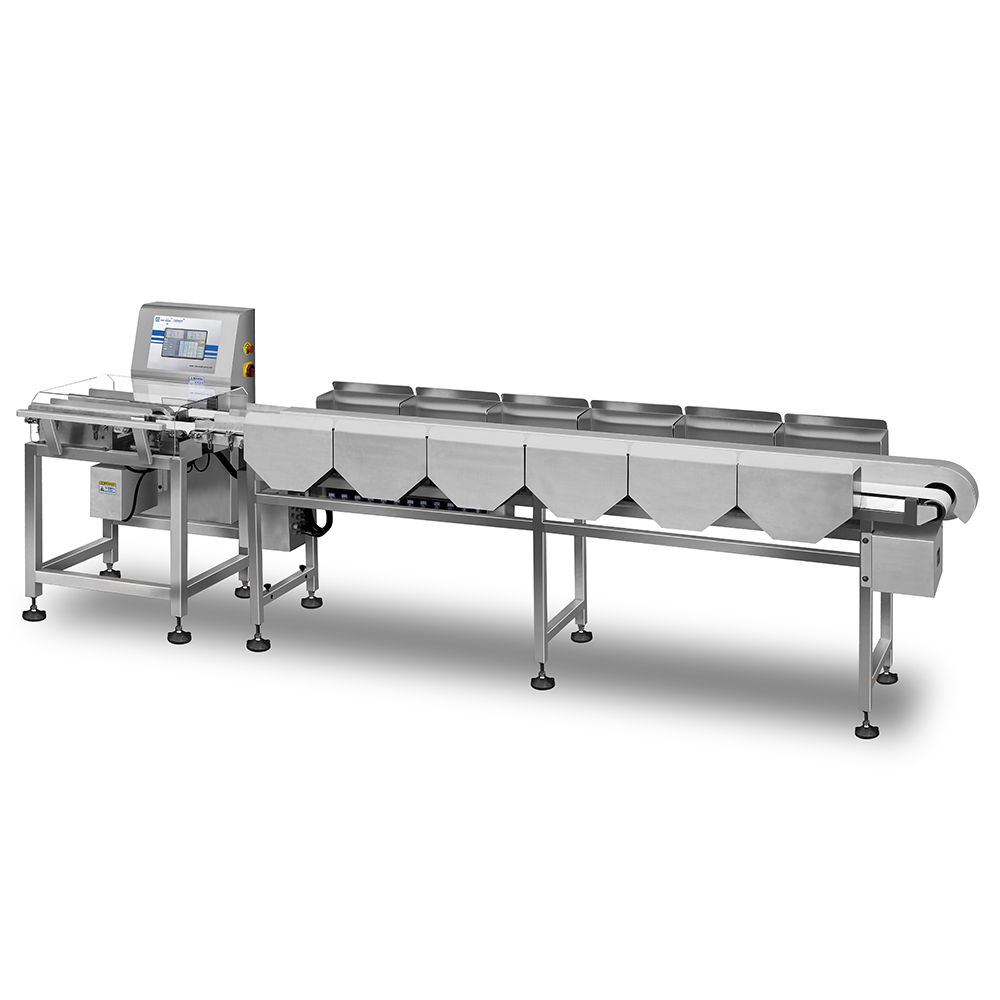

High Speed & Accuracy Weight Grader YGW-150F8/2

High Speed & Accuracy Weight Grader YGW-150F8/2 is sorting of fruits and vegetables, seafood, poultry, aquatic products, frozen products, small and light products weighing less than 1000g, etc.

It is widely used in the production and processing of agriculture and the food industry.

Our weight grader can sort and grade products automatically with high speed and high precision. It’s a perfect choice for the weight sorting of frozen foods. (Such as frozen shrimp, crab, abalone, chicken wings, squid, etc.)

  • A/D converter switches data quickly
  • Swing Arm or Air Blast rejection is optional
  • The belt is installed and removed quickly
  • Low voltage electric box with safe and highly
  • Multiple machines can be controlled and managed centrally
  • The components adopt the top brand
  • Satisfied HACCP and IFS certification requirements

Specifications

Model: YGW-150F8/2
Checking Range: ≤200g
Accuracy Allowance: ±0.3g~±1g
Minimum Scale: 0.1g
Conveyor Speed: 20-100m/min
Checking Size: Length:≤150mm | Width:≤100mm
Weighing Belt Size: Length:300mm | Width:150mm

Power: AC220V±10% 50Hz(60Hz)
Operation Mode: Touch Screen
Control System: High Speed A/D Sampling Module
Environment: Temperature 0℃-40℃, Humidity: 30%-95%
Products Preset: 100
Rejection: Swing Arm
Body Material: Stainless Steel SUS304

Key Features

High-speed and high-precision sorting

The highest accuracy can reach ±0.3g ~ ±1g. The speed of weight grader can reach 60-90m/min (160-400PPM). The accuracy is guaranteed for long-term use and the operating system needn’t be calibrated frequently.

The original design of dual lane

The dual conveyor line can improve double working efficiency. The automated sorting machines just need one person to load the material, which greatly saves labor costs.

Multiple waterproof protection

The whole fruit grader machine is made of SUS304 stainless steel and adapts a professional waterproof mechanical design. The electrical box-bearing transmission components are fully sealed and protected.  Components(the waterproof motor, the waterproof cover, etc)can be washed directly. Waterproof up to IP65.

10′ inch color touch screen.

The production data can be viewed on the HMI of High Speed & Accuracy Weight Grader YGW-150F8/2. The user-friendly interface with user password protection can store up to 100 product parameters.

Data can be stored and exported easily

The system can record 365 days of production data. The Bluetooth connection function is optional to choose from. You can export data to a USB easily and connect external devices. (Such as labeling machines, printers, scanners, computers, etc.) And it can realize that one computer controls multiple sorting machines to manage together.
