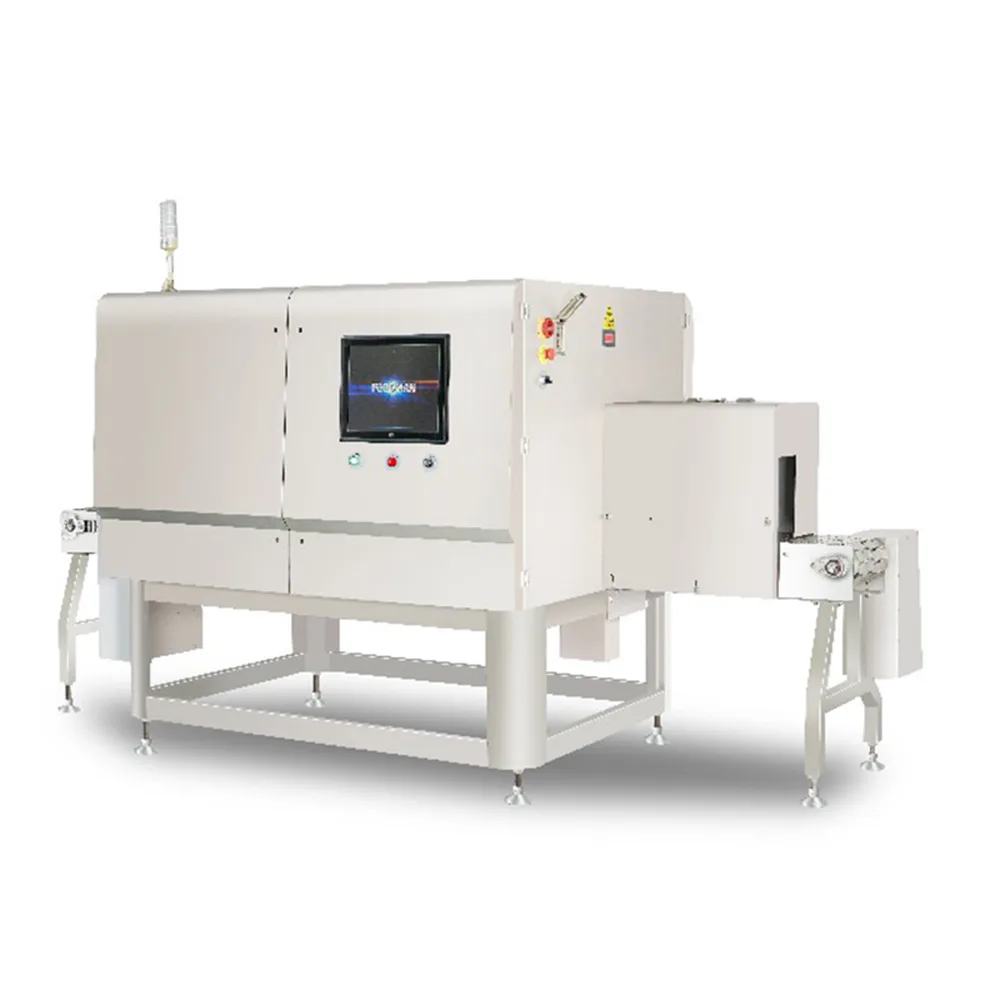

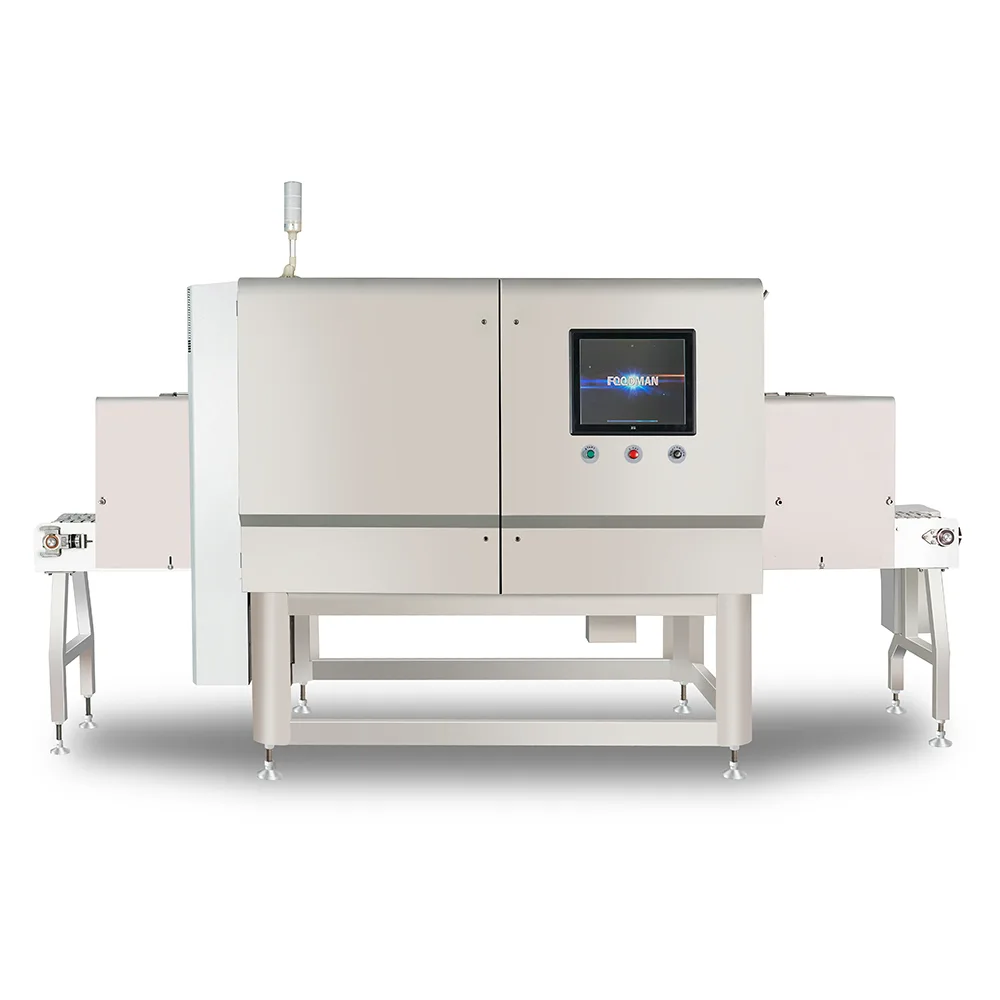

Foodman Dual Beam Side Scan Food X-Ray Inspection System
Enhance product safety and quality with Easyweigh’s Dual Beam Side Scan Food X-Ray Inspection System. Our advanced food X-ray machine is widely used in the food processing, chemical, and pharmaceutical industries.
Detect foreign objects, eliminate blind spots in canned and bottled products, and ensure compliance with our specialized design.
Suitable for vertical boxes, cans, paper bags, and paper boxes, our automatic X-ray inspection system delivers accurate results for the food industry.
Key Highlights
- 17 inches full-color touch screen, easy to use
- Intuitive operation interface. Pre-Installed Windows10 system
- High configuration and stability
- IP66 waterproof level
- More than 250 products preset
- All-in-one solution, customizable rejection system
Technical Specifications
Technical specifications for Dual Beam Side Scan Food X-Ray Inspection System.
- Model: FXR-C180-2
- X-Ray Tube: 40-120KV
- Aperture Size: Width: 180mm; Height: 250mm
- Working Speed: 10-100m/min
- Sensitivity(mm):
Stainless Steel Ball: Ф0.3
Stainless Steel Wire: Ф0.2*2
Ceramic: Ф1.0
Glass: Ф1.0
- Operation: 17-inch colored touch screen, Windows System
- Support data interface: LAN Port, USB Port
- Power Supply: AC220V±10% 50Hz(60Hz), 1.5KVA Max
- Rejector: Pusher
- Waterproof Level: IP66 for tunnel, IP54 for rest part (Suitable for wet food processing environments)
- Operating Requirement: Temperature：-10℃～40℃，Humidity：30%～90%
- Main Structure: SUS304 Stainless Steel
Key Features & Benefits
Dual imaging system
Detect products accurately and eliminate blind spots with our x-ray inspection system. Our system utilizes two light sources crossed horizontally and vertically, thus ensuring a complete scan from different angles.
Effective detection
Experience faster and more effective detection, particularly for foreign objects in densely packed glass bottles and cans. Our food x ray machine excels at recognizing foreign objects in various parts of sealed packaging, ensuring product safety.
High accuracy
Our food x-ray machine is capable of detecting metal balls as small as 0.3mm. This high level of precision ensures reliable identification of even the tiniest metal contaminants.
Auto-Learn feature
Operate our x ray inspection system effortlessly with the intuitive 17-inch full-color touch screen. The automatic learning function enables easy parameter setup and automatic saving of detected pictures, facilitating product quality traceability and control.
The first design to separate the light source from the appliances
Our industry-leading design separates light sources from electrical appliances. This innovation allows our x ray food inspection system to function optimally in harsh environments by incorporating a powerful air conditioning system and an independent air supply system.
Remote Assistance
We are proud to introduce remote operation functions, a first in the industry. This feature enables remote assistance, enhancing problem-solving capabilities and improving overall working efficiency. Enjoy peace of mind with our comprehensive after-sales support.
Wide range of voltage control
Benefit from a high voltage level at no additional cost. With a wide adjustable range and higher accuracy, our x ray inspection machine system accommodates the industry-standard voltage (K100 voltage level) efficiently.
Safe and reliable
Ensure food safety compliance with our x-ray machine, which maintains x-ray leakage below 1 μSv/hour, meeting the strict standards of FDA and CE. Trust in our system to prioritize food safety regulations.
Industries We Serve
Seafood
Advanced food x-ray inspection systems enable accurate detection of contaminants in fresh and frozen products, supporting x-ray inspection for unpackaged products and x-ray packaged food to ensure safety and quality compliance.
Meat & Poultry
High-precision meat x ray machine and x ray meat solutions deliver reliable x ray inspection of food, identifying bones, metal, and foreign objects while optimizing throughput with x-ray checkweigher integration.
Snacks & Bakery
Intelligent food x-ray inspection equipment and x ray machine for food industry solutions ensure consistent product integrity by detecting contaminants and defects in high-speed canned food x-ray inspection and packaged goods lines.
Pharmaceuticals
Precision-engineered x ray machines for food industry adapted for pharma applications provide reliable x ray detector food industry performance, supporting strict compliance in pet food xray inspection and sensitive product inspection processes.
Dairy & Beverage
Hygienic pipeline x ray and x-ray inspection of food through a pipeline technologies enable continuous inspection of liquid and semi-liquid products using advanced pipeline x ray equipment and pipe x ray machine systems.
Prepared Foods
Integrated combination checkweigher xray and food inspection systems enhance production efficiency by combining weight control and food x ray inspection for both bulk and food x-ray packaging applications.
