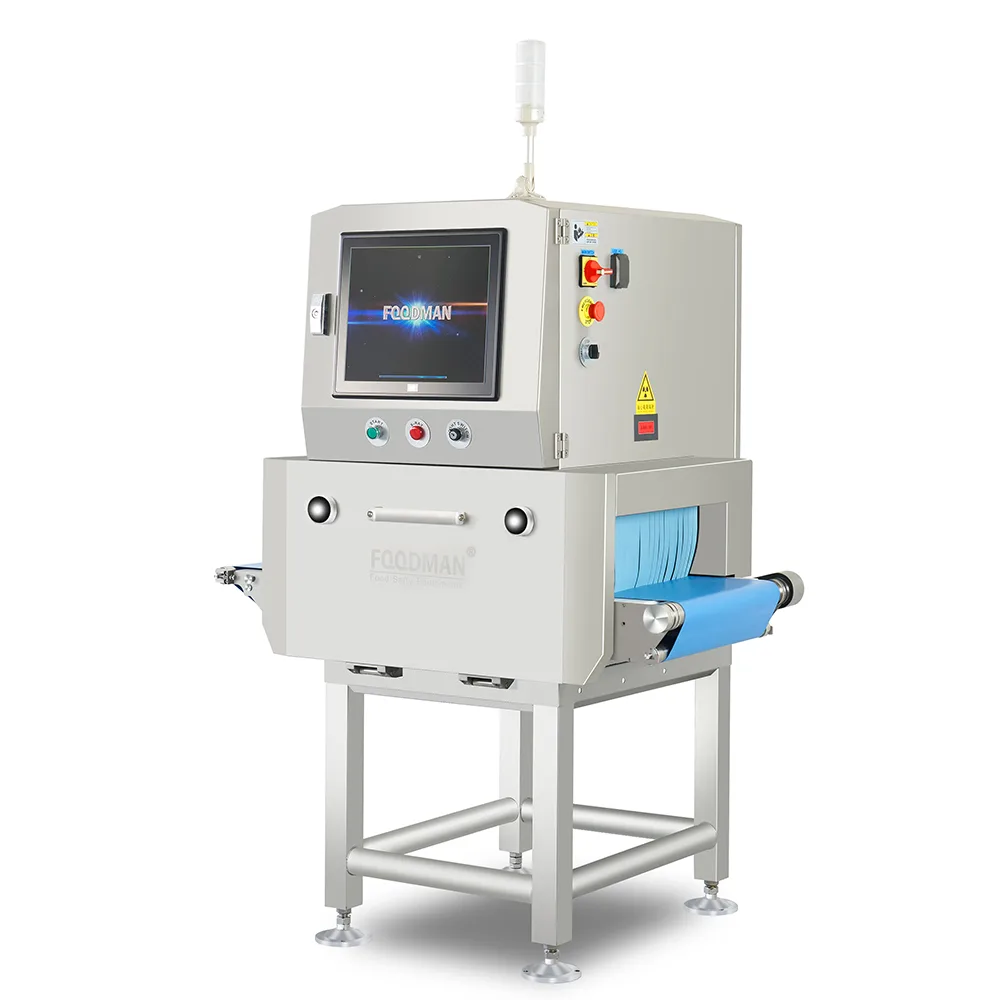

Foodman Dual Energy X-Ray Inspection For Bones
Detecting small, hard, and calcified bones in the poultry and meat processing industries is challenging due to their low density and varying shapes influenced by factors such as age, breed, and specific cuts of meat.
The Foodman Dual Energy X-ray Inspection System is an advanced solution designed for the modern poultry industry. This X-ray machine can detect calcified bones, hard bones and small bones in poultry products, including boneless raw meat such as chicken breasts, chicken legs and chicken wings, and processed foods such as chicken nuggets, sausages and meat patties.
The system reliably ensures quality and safety by improving the detection of non-metallic contaminants, ensuring that even the tiniest foreign objects and bones can be identified and removed.
Key Highlights
- User-Friendly
- AI Self-Learning
- Efficient Throughput
- Customizable
Technical Specifications
Technical specifications for Dual Energy X-Ray Inspection for Bones.
- Model: FXR-BN30/FXR-BN40/FXR-BN60
- X-Ray Tube:350W/480W/480W
- X-ray Detector:0.1, 0.2, 0.4, 0.8mm TDI Dual Energy
- Max Product Width:300mm/400mm/600mm
- Max Product Height:170mm/170mm/170mm(350mm)
- Conveyor Belt Speed:5-40m/min
- Sensitivity(mm)
Calcified bone: 1.0mm
Fan bone: 2.0 mm
Rib bone: 2.0 mm
Wishbone: 2.0 mm
Stainless Steel Wire: 0.2*2 mm
Stainless Steel Ball: 0.3 mm
Aluminum: 0.7 mm
Ceramic: 0.8mm
Glass: 0.8mm
- Operation Display:17-inch colored touch screen, Windows System
- Power Supply:AC220V, 2Kv, 50/60Hz
- Rejector: Support various rejectors
- Waterproof: Level IP66
- Operating Requirement Temperature：-10℃～40℃，Humidity：30%～90%
- Main Structure: SUS304 Stainless Steel
- Connectivity: Ethernet/IP (EIP)/USB/TCP/IP Modbus TCP/RTU
- X-ray Emissions:< 1uSv/hr
Key Features & Benefits
Up to 0.1mm Dual Energy Detector
The Foodman Dual Energy X-Ray Inspection System is equipped with up to 0.1mm dual energy detector, offering exceptional sensitivity in detecting the smallest contaminants. This ultra-precise detector enhances the system’s ability to identify minute foreign objects, such as small rib bones, small metal and calcified bones in poultry products. The 0.1mm resolution ensures the highest safety and quality in food inspection.
Enchanced Image Algorithm
Foodman Dual Energy X-ray Inspection System uses FDX (FOODMAN DUAL ENERGY XRAY) technology to accurately detect small rib bones, calcified bones, and other low-density contaminants in poultry products.It also adopts FIAP image processing technology with AI-driven algorithms to enhance detection accuracy in real-time.
High Throughput Efficiency
Designed to meet the demands of large-scale poultry processing, the Foodman Dual Energy X-Ray Inspection System can inspect up to 120 pieces per minute. This high throughput efficiency minimizes bottlenecks and enhances overall productivity without compromising inspection accuracy.
Low False Reject Rate
The advanced algorithms in this type of X-ray machine minimize false rejects by accurately identifying only defective or contaminated poultry products. The algorithms reduce waste, optimize product yield, and ensure that only the highest quality products reach the consumer, making it a cost-effective solution for poultry processors
