High Speed & Accuracy Checkweigher YCW-G100/G150 Series

High Speed & Accuracy Checkweigher YCW-G100/G150 Series is suitable for detecting small weight packages and unqualified items of single weight.

The dynamic checkweigher is widely applicable in food, pharmaceutical, agriculture, cosmetics and other industries.

For small items, the high speed checkweigher accuracy is up to ±0.1g. Our main application is to detect products (such as powder, fragment, liquid,  drugs) that are overweight or defective. Our equipment has an excellent performance in detecting tablets and capsules.

  • Sanitary design, conveyor tool-free disassembly
  • Generating production reports
  • Strong and durable. SUS304 and SUS306 optional

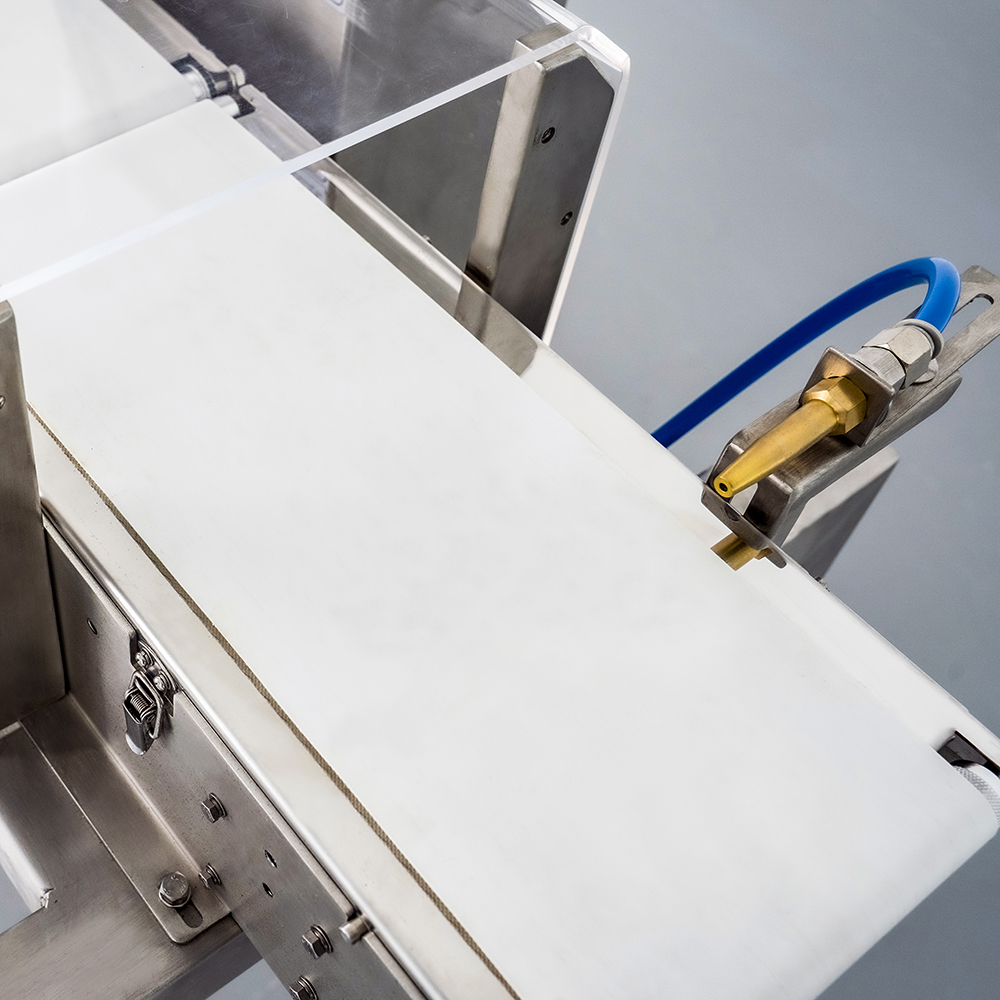

  • Checkweigher reject system is available ( Air Blast, Swing Arm, Drop Down )
  • Multi-level user password protection to ensure data security
  • Screen sleep mode

Specifications

Model: YCW-G100 | YCW-G150
Checking Range: ≤50g | ≤50g
Accuracy Range: ±0.1g | ±0.1g
Minimum Scale: 0.05g | 0.01g
Conveyor Speed:
20~90m/min
20~90m/min
Checking Size:
Length: ≤100mm Width: ≤90mm
Length: ≤200mm Width: ≤140mm
Weighing Belt Size:
Length: 200mm Width: 95mm
Length: 300mm Width: 145mm

Power: AC220V±10% 50Hz(60Hz)
Operation Mode: Touch Screen
Control System: High Speed A/D Sampling Module
Products Preset: 100
Rejection: Air Blast | Air Blast; Pusher
Environment: Temperature 0℃-40℃Humidity: 30%-95%
Body Material: Stainless Steel SUS304

Key Features

Specialized checking in small items and packages

This kind of checkweigher is applicable to sachets, bags, cans and small-weight items especially. The minimum checking weight is 3g. The checking range of the weighing material is less than 100g. It is suitable for coffee powder, nutrient powder, tea bags, lipsticks, tablets, capsules, etc.

High speed, accuracy and stability

The accuracy of this automatic checkweigher is ±0.1g. Max speed up to120m/min. And conveyor speed is up to 400pcs/min. (It is according to your products of course)

User-friendly operation

The 7-inch color touch screen operating system is easy to use. It can switch products in a few seconds and store up to 100 product parameters. Operating system support for multiple languages.

Data-stored and multi-device connected function

The dynamic checkweigher includes data-stored and multi-device connected functions. Production data is recorded for up to 365 days. Optionally, data can be stored directly on a USB. Our checkweigher is able to connect peripheral equipment and manage multiple machines together.

Flexible matching with existing production lines

The height of High Speed & Accuracy Checkweigher YCW-100/G150 Series is adjustable. The height is from 400 to1200mm. (+/- 100 adjustment). Besides, our checkweigher system can integrate with your existing production line with no difficulty, easy to improve your working efficiency.

Stable and reliable

Brushless motors and durable conveyor components are designed for 24/7 operation. It is stable and reliable.

High configuration and custom service

We adopt international top brand components. And the checkweigher system can be customizable to meet your needs.
