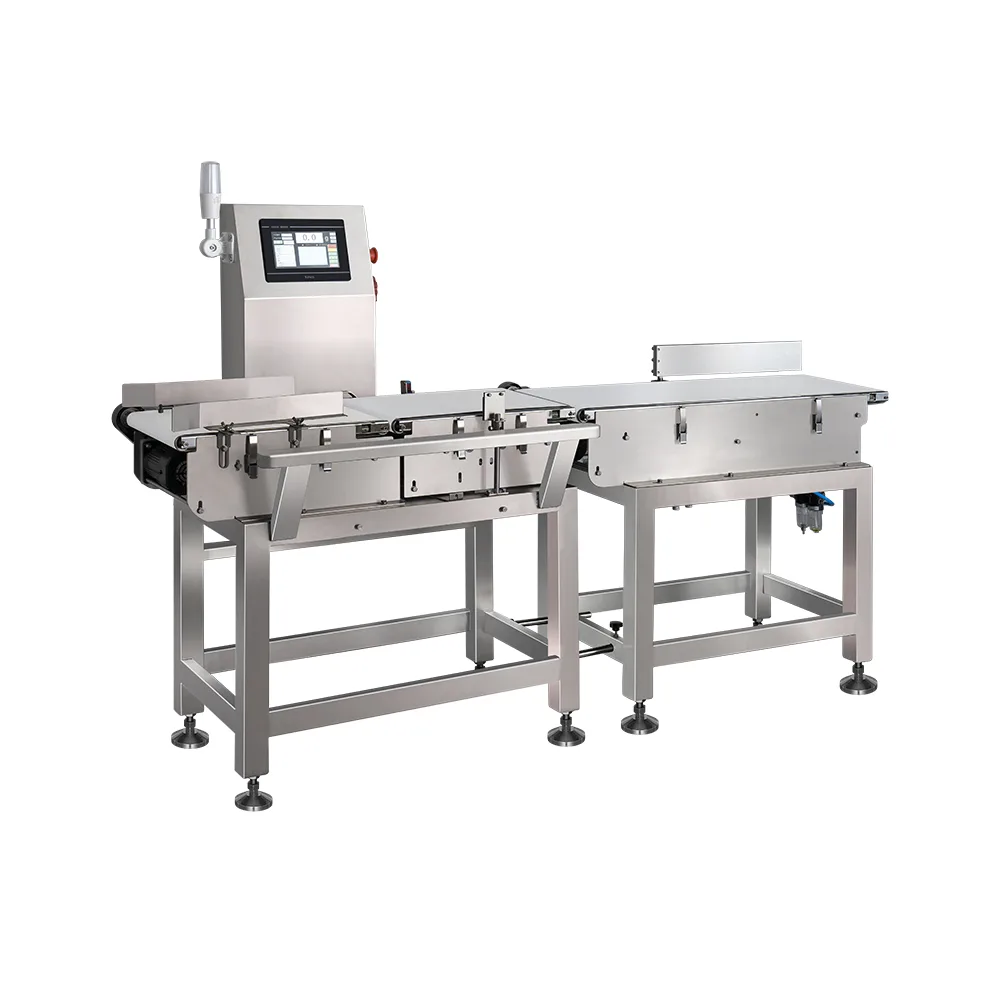

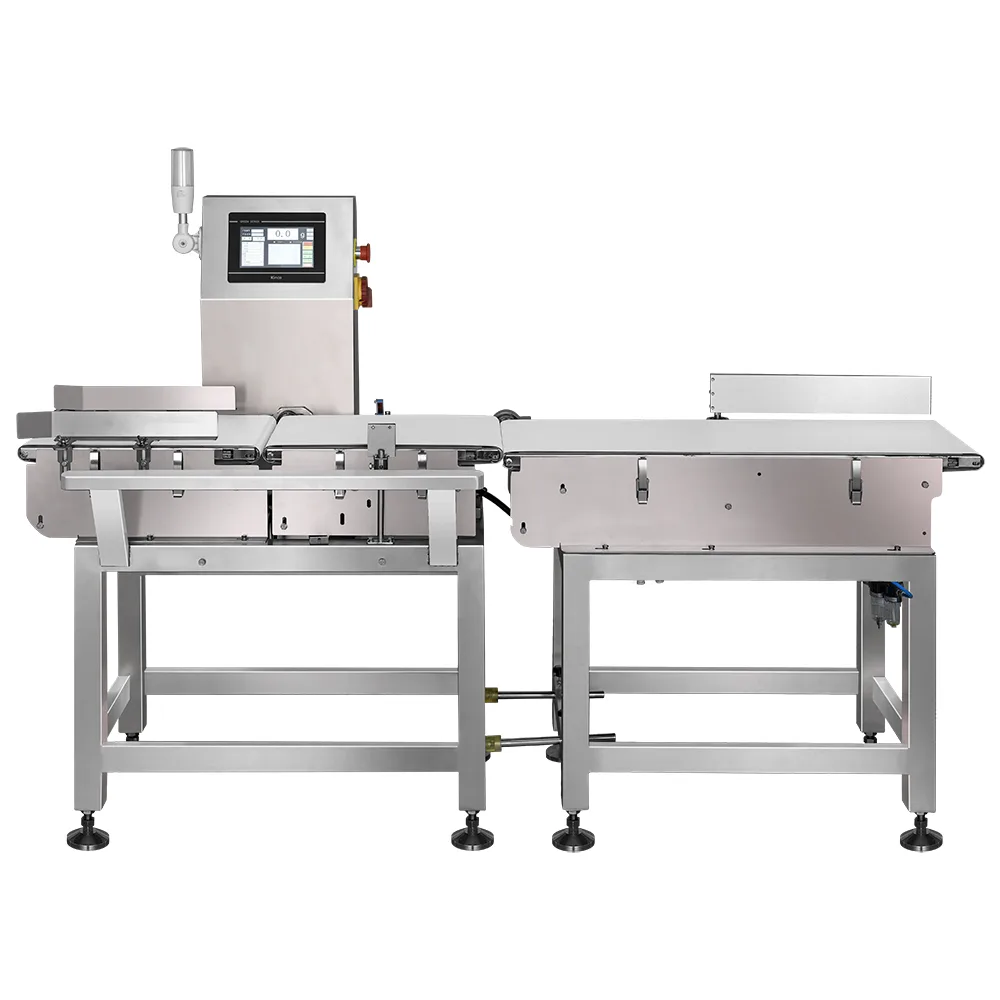

General Purpose Dynamic Checkweigher YCW-150/210/300

Not only the dynamic checkweigher is suitable for checking product qualification but also detect missing parts in the whole box. Such as missing bottles, missing boxes, missing pieces, missing bags and loss of accessories (desiccant, manual, etc.)

The automatic checkweigher is widely used in food, pharmaceutical, agriculture, industry, chemistry, cosmetics and other industries.

General Purpose Dynamic Checkweigher YCW-150/210/300 is applicable to check products within 12kg. The general volume product is within 300mm in length and 290mm in width. The highest accuracy of the in-motion checkweigher can reach ±0.2g. Suitable for single and whole medicines, bagged snacks, bottled skin care products, electronic product components, etc.

  • High speed, high precision, high sensitivity
  • Max speed can reach 120m/min, can detect 400pcs/min
  • Sanitary design, conveyor tool-free disassembly
  • Multi-language interface, large memory capacity
  • Accurate and efficient checkweigher reject system
  • User parameters easy to set and operate

Specifications

Model: YCW-150 | YCW-210 | YCW-300
Checking Range: ≤200g | ≤1000g | ≤12Kg
Accuracy Range: ±0.2g~±0.3g | ±0.3g~±1g | ±0.5g~±2g
Minimum Scale: 0.1g
Conveyor Speed: 20~90m/min
Checking Size:
Length: ≤150mm, Width: ≤140mm
Length: ≤280mm, Width: ≤200mm
Length: ≤300mm, Width: ≤290mm

Weighing Belt Size:
Length: 200/300mm, Width: 150mm
Length: 400mm, Width: 210mm
Length: 450mm Width: 300mm
Power: AC 220V±10% 50Hz(60Hz)
Operation Mode: Touch Screen
Control System: High Speed A/D Sampling Module
Environment: Temperature 0℃-40℃, Humidity: 30%-95%
Rejection: Air Blast, Swing Arm, Pusher, Drop Down, Flip-up, Diversion, Portal Frame
Products Preset: 100
Body Material: Stainless Steel SUS304

Key Features

Strong versatility and wide checking range

General Purpose Dynamic Checkweigher YCW-150/210/300 series can be applied to inspect most production materials. The checking range is from 100g to 12kg.

High speed and stability

The checkweigher conveyor max speed is up to 90m/min. The accuracy of detection is stable.

Multiple rejection systems are available

It can be equipped with a variety of rejection devices and can be customized: Air Blast, Swing Arm, Pusher, Drop Down, Flip-up, Diversion, Portal Frame.

User-friendly interface

The 7-inch color touch screen operating system is easy to operate. It can switch products in a few seconds and store up to 100 product parameters. Operating system support for multiple languages.

Multi-device connection function

The device’s operating system supports multiple languages. Dynamic Checkweigher has data storage and multi-device connection functions. Not only can record production data for up to 365 days, but also can connect to peripheral devices. Connecting peripheral devices’ functions can be managed by multiple devices simultaneously. It also supports data exportation to USB.

Flexible matching with existing production lines

The height of General Purpose Dynamic Checkweigher YCW-150/210/300 is adjustable. The height is from 400 to1200mm. (+/- 100 adjustment). Besides, our checkweigher system can integrate with your existing production line with no difficulty, easy to improve your working efficiency.
