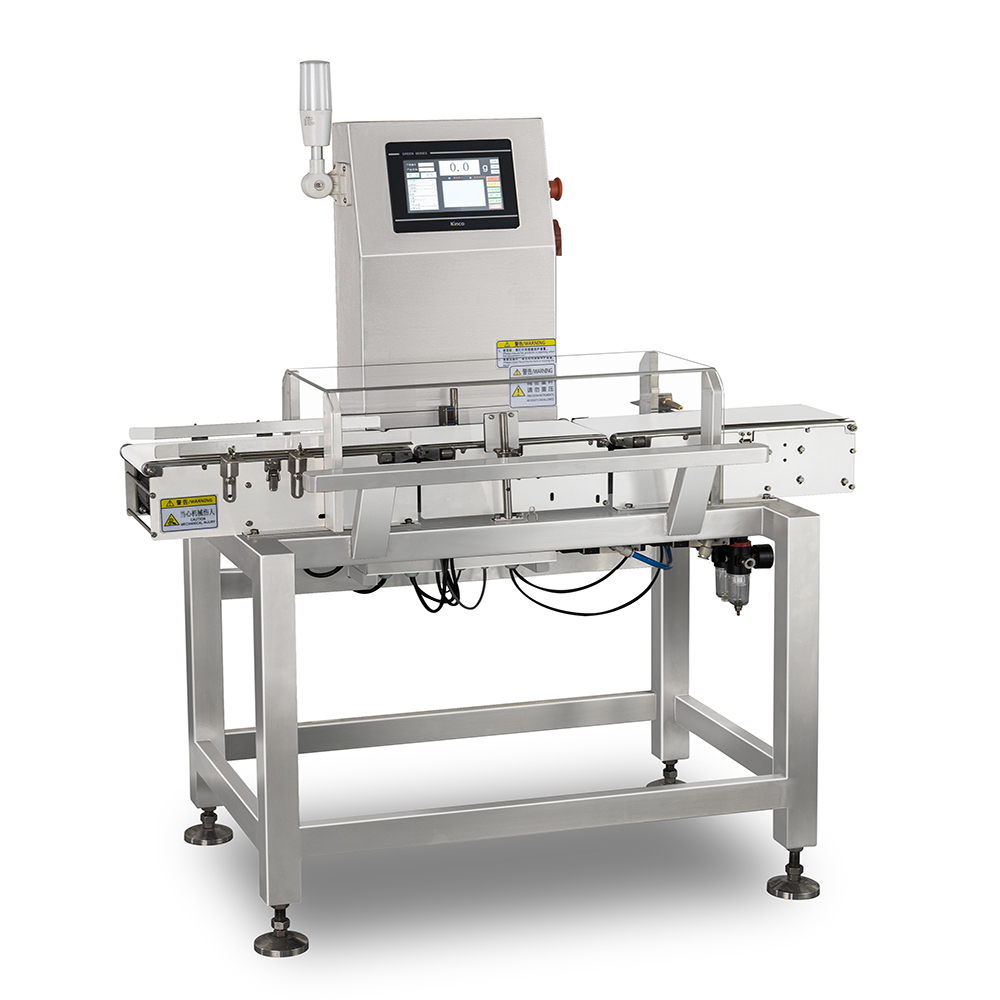

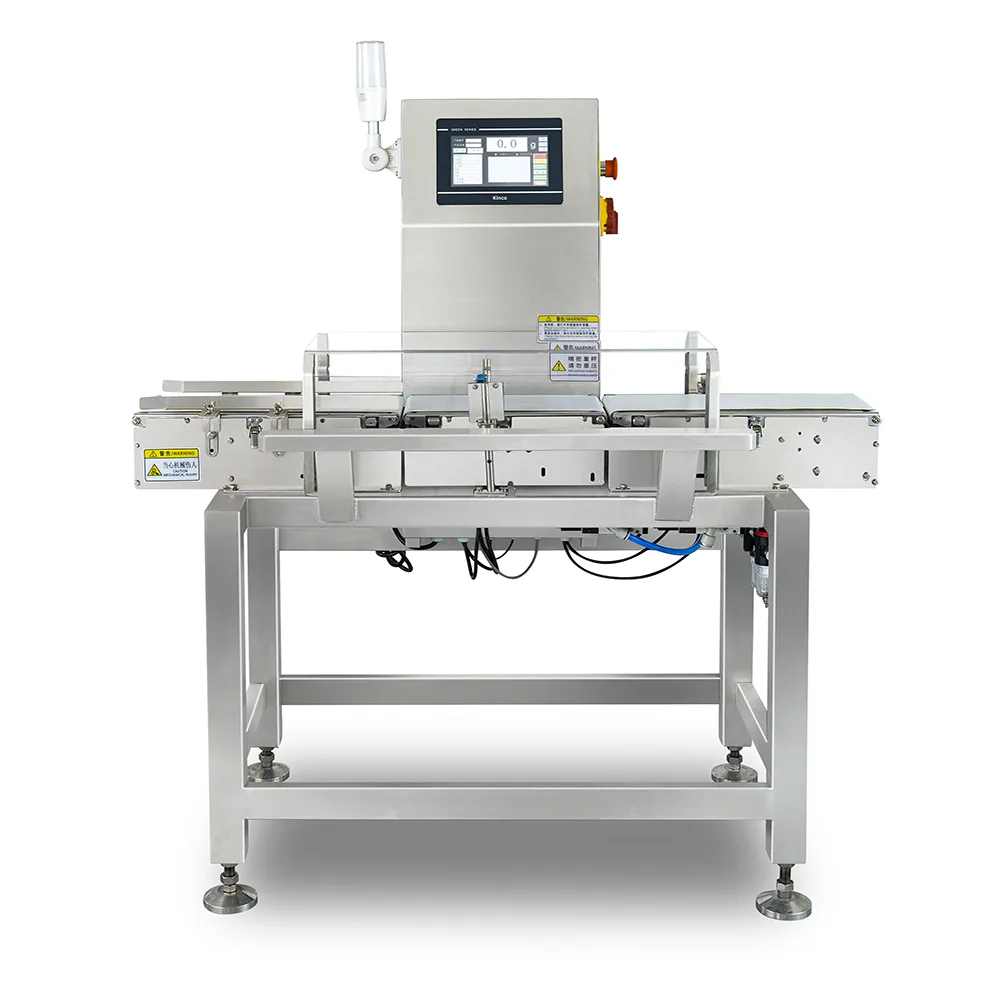

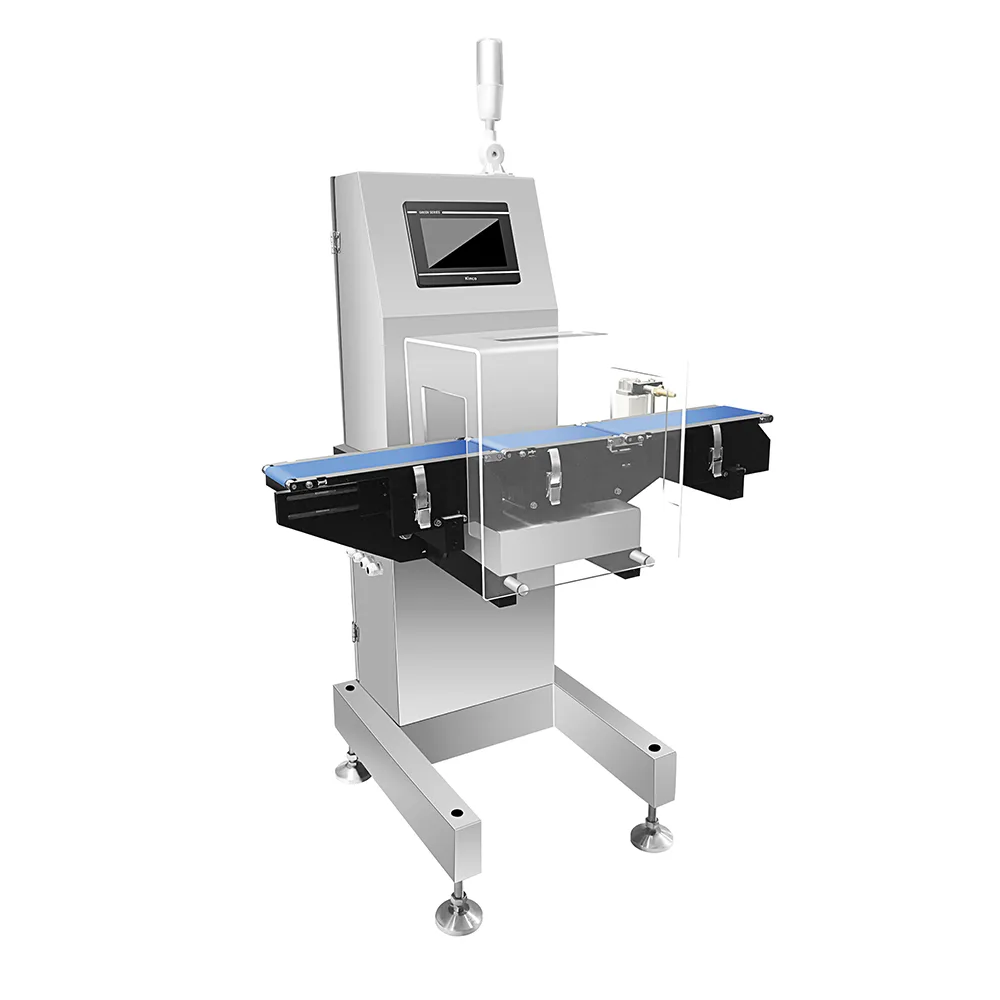

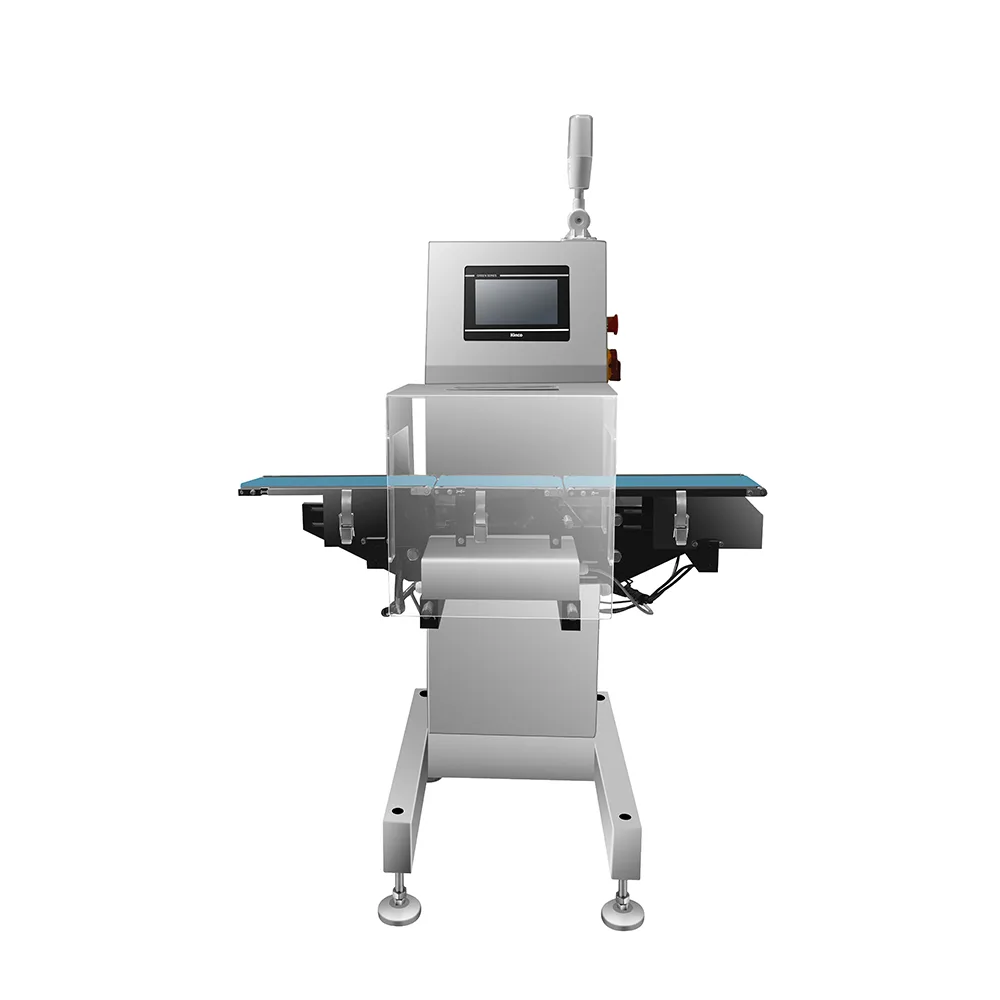

High Speed & Accuracy Checkweigher
High Speed & Accuracy Checkweigher YCW-G100/G150 Series is suitable for detecting small weight packages and unqualified items of single weight.
The dynamic checkweigher is widely applicable in food, pharmaceutical, agriculture, cosmetics and other industries.
For small items, the high speed checkweigher accuracy is up to ±0.1g. Our main application is to detect products (such as powder, fragment, liquid, drugs) that are overweight or defective. Our equipment has an excellent performance in detecting tablets and capsules.
- Sanitary design, conveyor tool-free disassembly
- Generating production reports
- Strong and durable. SUS304 and SUS306 optional
- Checkweigher reject system is available ( Air Blast, Swing Arm, Drop Down )
- Multi-level user password protection to ensure data security
- Screen sleep mode
Specifications
Model: YCW-G100/150
Checking Range: ≤50g/≤50g
Accuracy: ±0.1g
Minimum Scale: 0.05g
Working Speed: 20~120m/min
Product Size:
Length: ≤100mm/≤200mm
Width: ≤90mm/≤140mm
Weighing Part Size:
Length: 200mm/300mm
Width: 95mm/145mm
Operation: 7-inch colored touchscreen
Power Supply: AC220/110V±10% 50Hz/60Hz
Rejector: Air blast; Air blast / Pusher
Control Module: High-Speed A/D Sampling Module
Product Preset: 100
Operating Requirement: Temperature: 0℃~40℃,Humidity:30%~95%
Main Structure: SUS304 Stainless Steel
Key Features
Specialized checking in small items and packages
This kind of checkweigher is applicable to sachets, bags, cans and small-weight items especially. The minimum checking weight is 3g. The checking range of the weighing material is less than 100g. It is suitable for coffee powder, nutrient powder, tea bags, lipsticks, tablets, capsules, etc.
High speed, accuracy and stability
The accuracy of this automatic checkweigher is ±0.1g. Max speed up to120m/min. And conveyor speed is up to 400pcs/min. (It is according to your products of course)
User-friendly operation
The 7-inch color touch screen operating system is easy to use. It can switch products in a few seconds and store up to 100 product parameters. Operating system support for multiple languages.
Data-stored and multi-device connected function
The dynamic checkweigher includes data-stored and multi-device connected functions. Production data is recorded for up to 365 days. Optionally, data can be stored directly on a USB. Our checkweigher is able to connect peripheral equipment and manage multiple machines together.
Flexible matching with existing production lines
The height of High Speed & Accuracy Checkweigher YCW-100/G150 Series is adjustable. The height is from 400 to1200mm. (+/- 100 adjustment). Besides, our checkweigher system can integrate with your existing production line with no difficulty, easy to improve your working efficiency.
Stable and reliable
Brushless motors and durable conveyor components are designed for 24/7 operation. It is stable and reliable.
High configuration and custom service
We adopt international top brand components. And the checkweigher system can be customizable to meet your needs.
