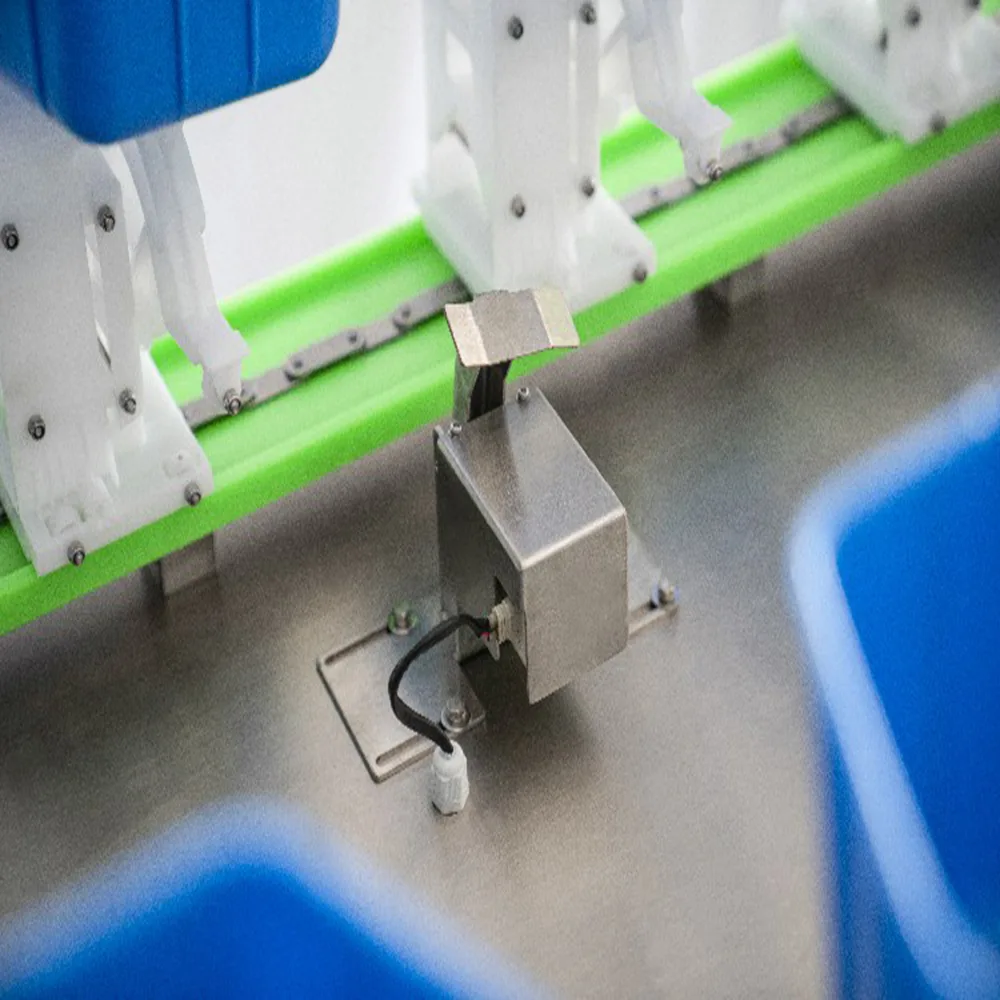

the rejector of rotating trays grading and combination weigher

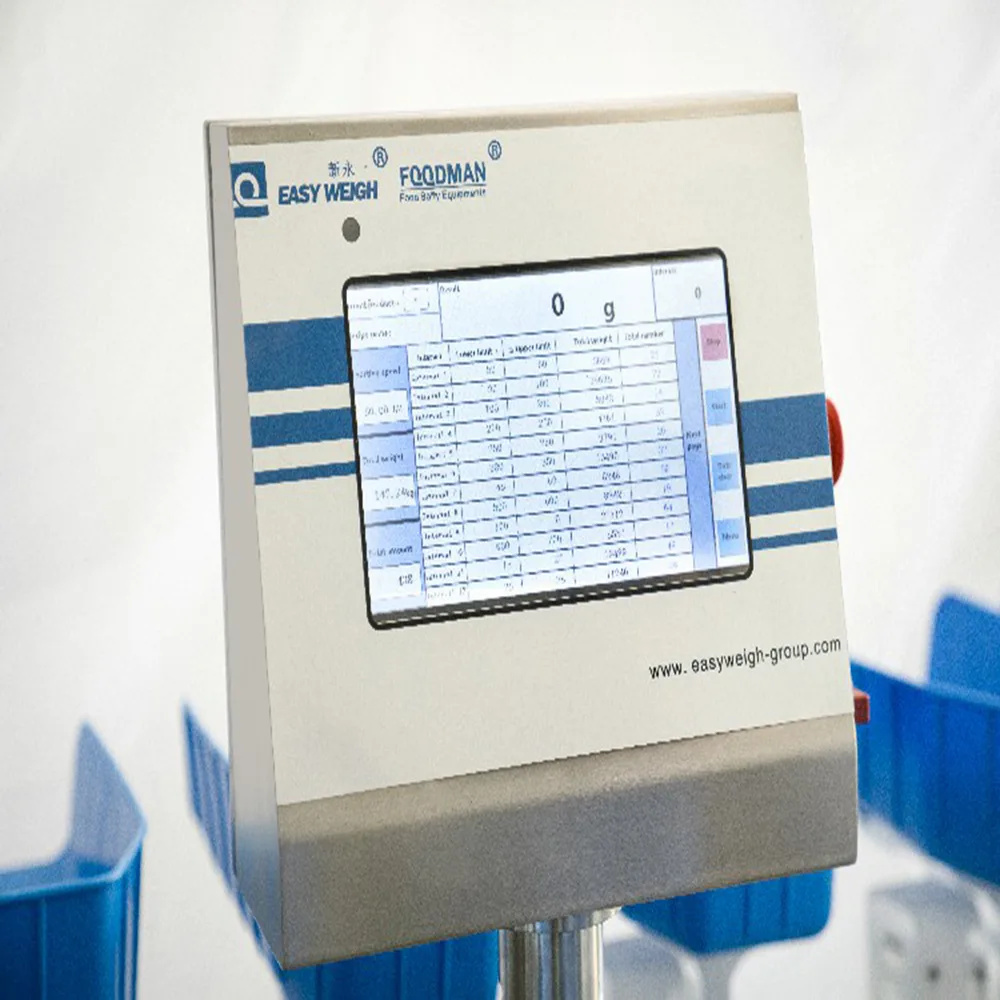

the screen of rotating trays weight grader operation interface

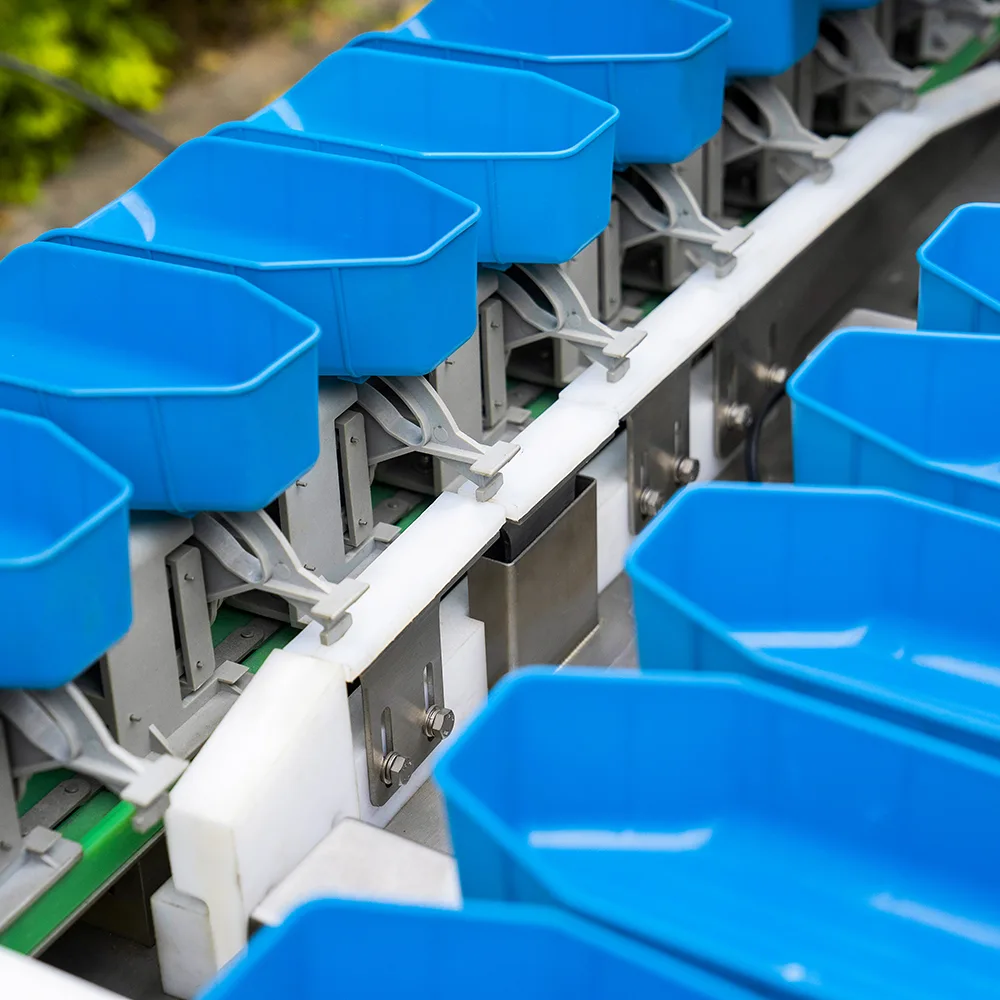

the infeed hoppers of rotating trays weight grader

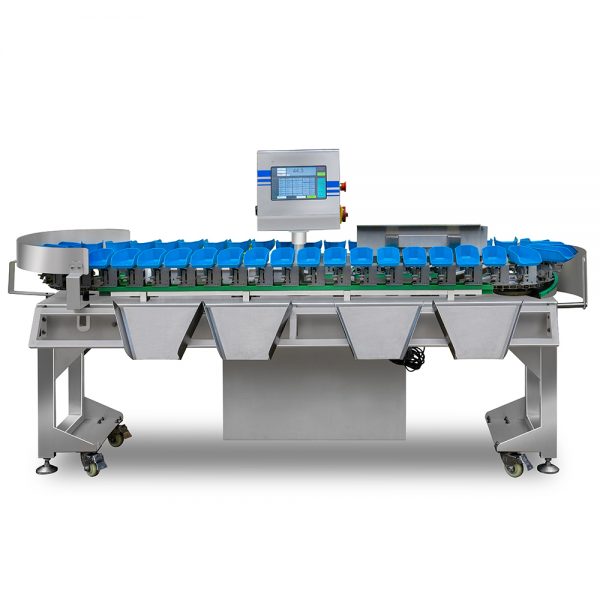

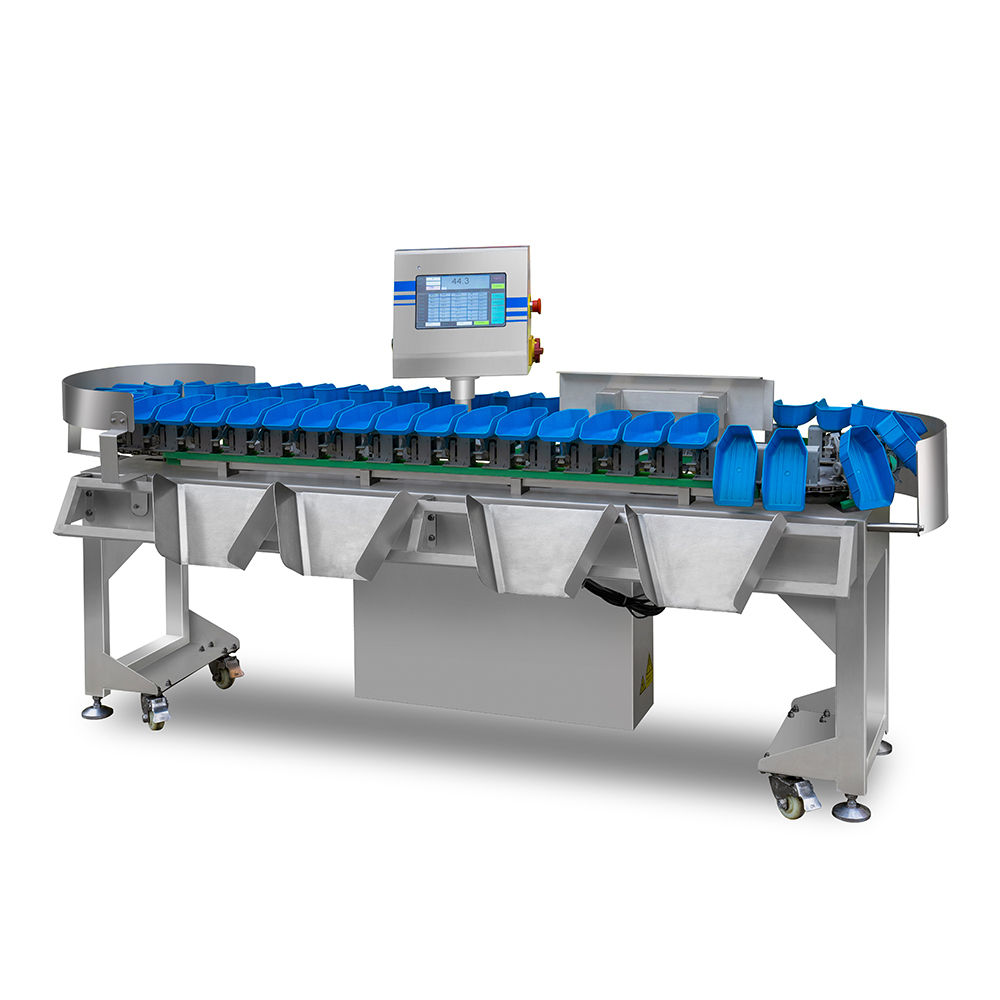

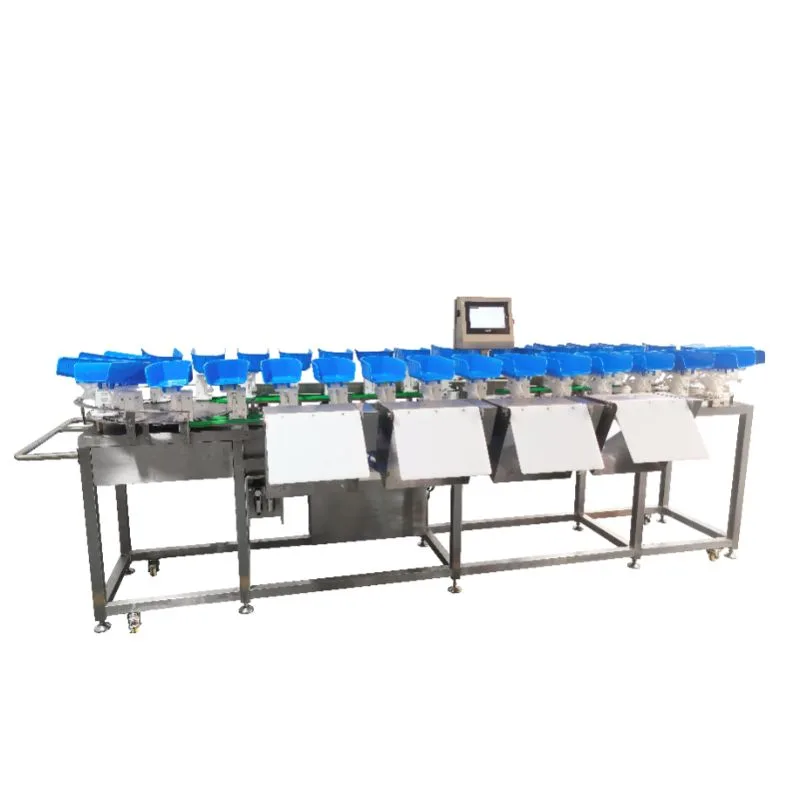

Rotating Trays Grading & Combination Weigher

Experience precision and efficiency with our Rotating Trays Grading & Combination Weigher. Equipped with an innovative weight sorting system, our automated sorting machines, not only weight or quantity combinate of different products but also weight classification can also be selected.

Ideal for fruits, fish, meat, and various materials, our equipment ensures accurate weight combinations. It is suitable for a weight or quantity combination of different products and weight classification can also be selected. One machine with multiple uses.

Trust Easyweigh for reliable weight sorters and combination weighers that optimize your sorting and production processing.

High-speed A/D converter switches data fast
With a Swing Arm rejection system
One computer controls multiple graders centrally
The belt is cleaned and maintained easily
The components adopt international brands
Fit HACCP, IFS certification requirements

Specifications

Model: YPZ-YP170/200/250/330
Checking Range: ≤500g/≤1000g/≤1000g/≤5000g
Accuracy: ±0.3g ~ ±1g/±2g ~ ±3g/±3g ~ ±5g/±5g ~ ±10g
Minimum Scale: 0.1g
Working Speed: ≤300pcs/min; ≤200pcs/min; ≤200pcs/min; ≤120pcs/min
Product Size:
Length: ≤150mm/≤180mm/≤230mm/≤310mm
Width: ≤80mm/≤100mm/≤100mm/≤170mm

Tray Size:
Length: 173mm/200mm/250mm/330mm
Width: 91mm/117mm/119mm/183mm
Operation: 10-inch colored touchscreen
Power Supply: AC220/110V±10% 50Hz/60Hz
Rejector: Drop
Control Module: High-Speed A/D Sampling Module
Product Preset: 100
Operating Requirement: Temperature： 0℃～40℃， Humidity：30%～95%
Main Structure: SUS304 Stainless Steel

Key Features

Dual Working Modes

Easyweigh combination weigher offers weight combination and weight classification capabilities. It is compact design, easy maintenance and economical price.

Flexible Grader Levels

Choose from 4 to 16 grader levels for convenient product selection and industrial classification. Adjust the material size to meet your specific requirements.

Versatile Material Trays

Four sizes tray of computer combination weigher options available – small, medium, large, and super large. Choose between stainless steel and plastic materials based on your needs.

Durable Construction

The entire combination weigher is made of SUS304 stainless steel, ensuring longevity and hygiene. The computer combination weigher achieves IP65 and above ratings, guaranteeing robust protection.
