Foodman Single Beam Side Scan Food X-Ray Inspection System
Single beam X-ray inspection system is used in the baby products industry, textile industry, pharmaceutical, etc.
Not only the food x ray machine would detect objects like metal, bones, glass, ceramics, stones, plastic, and rubber, but it also can ensure product quality by detecting defective products and missing parts.
The food x-ray machine adopts a special design. It is suitable for vertical boxes, cans, paper bags, paper boxes, etc.
Key Highlights
- Intuitive operation interface
- Easy cleaning and maintenance
- High configuration and stability
- IP66 waterproof level
- More than 250 products are preset
- Customized according to your needs
Technical Specifications
Technical specifications for Single Beam Side Scan Food X-Ray Inspection System.
- Model: FXR-C180
- X-Ray Tube: 40-120KV
- Aperture Size: Width: 180mm; Height:250mm
- Working Speed: 10-100m/min
- Sensitivity(mm):
Stainless Steel Ball: Ф0.3
Stainless Steel Wire: Ф0.2*2
Ceramic: Ф1.0
Glass: Ф1.0
- Operation: 17-inch colored touch screen, Windows System

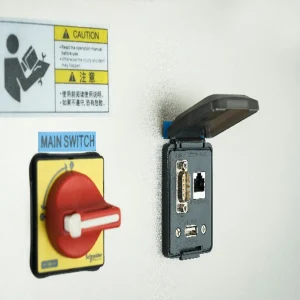

- Support data interface: LAN Port, USB Port
- Power Supply: AC220V±10% 50Hz(60Hz), 1.5KVA Max
- Rejector: Pusher
- Waterproof Level: IP66 for tunnel, IP54 for rest part (Suitable for wet food processing environments)
- Operating Requirement: Temperature：-10℃～40℃, Humidity：30%~90%
- Main Structure: SUS304 Stainless Steel
Key Features & Benefits
Single beam X-ray inspection system
We provide advanced food X-ray inspection solutions tailored for vertical packaging testing. Our automatic x-ray inspection system features side illumination, ensuring a wide penetration area for a thorough examination.
High accuracy
With exceptional sensitivity, our food x ray inspection equipment can detect metal balls as small as 0.3mm, ensuring high precision in contaminant detection.
Auto-Learn feature

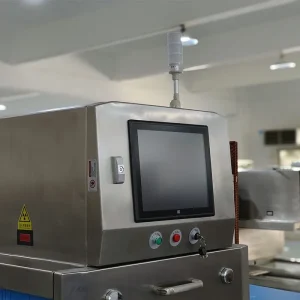

The user-friendly 17-inch full-color touch screen simplifies operation, while the automatic learning function can be used by the controller easily.
The first design to separate the light source from the appliances
Distinguished as industry pioneers, we have developed a groundbreaking design that separates light sources from electrical appliances. This innovative approach allows us to apply powerful air conditioning systems and independent air supply systems in diverse challenging environments, ensuring optimal performance and reliability..
Remote Assistance
We take pride in being the first company in the industry to introduce remote operation functions, enabling remote assistance for troubleshooting and enhancing operational efficiency. With our dedicated customer support, rest assured that any after-sales issues will be promptly addressed, providing you with peace of mind.
Wide range of voltage control
Our x ray inspection system boasts a wide voltage control range at no additional cost. Leveraging the industry’s high usage rate of standard voltage (K100 voltage level), our food x ray machine offers a broad adjustability range, resulting in higher accuracy and flexibility.
Safe and reliable
Moreover, we prioritize safety and compliance, with x-ray leakage levels maintained below 1 μSv/hour, fully aligned with FDA and CE regulations.Experience the reliability and effectiveness of our food x ray machine services. Invest in our cutting-edge food x-ray machine to elevate your quality control standards and ensure the safety of your products.
Industries We Serve
Seafood
Advanced food x-ray inspection systems enable accurate detection of contaminants in fresh and frozen products, supporting x-ray inspection for unpackaged products and x-ray packaged food to ensure safety and quality compliance.
Meat & Poultry
High-precision meat x ray machine and x ray meat solutions deliver reliable x ray inspection of food, identifying bones, metal, and foreign objects while optimizing throughput with x-ray checkweigher integration.
Snacks & Bakery
Intelligent food x-ray inspection equipment and x ray machine for food industry solutions ensure consistent product integrity by detecting contaminants and defects in high-speed canned food x-ray inspection and packaged goods lines.
Pharmaceuticals
Precision-engineered x ray machines for food industry adapted for pharma applications provide reliable x ray detector food industry performance, supporting strict compliance in pet food xray inspection and sensitive product inspection processes.
Dairy & Beverage

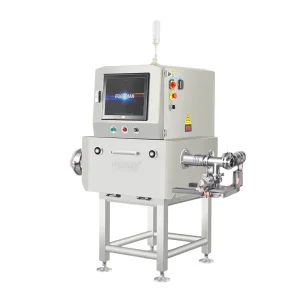

Hygienic pipeline x ray and x-ray inspection of food through a pipeline technologies enable continuous inspection of liquid and semi-liquid products using advanced pipeline x ray equipment and pipe x ray machine systems.
Prepared Foods
Integrated combination checkweigher xray and food inspection systems enhance production efficiency by combining weight control and food x ray inspection for both bulk and food x-ray packaging applications.
