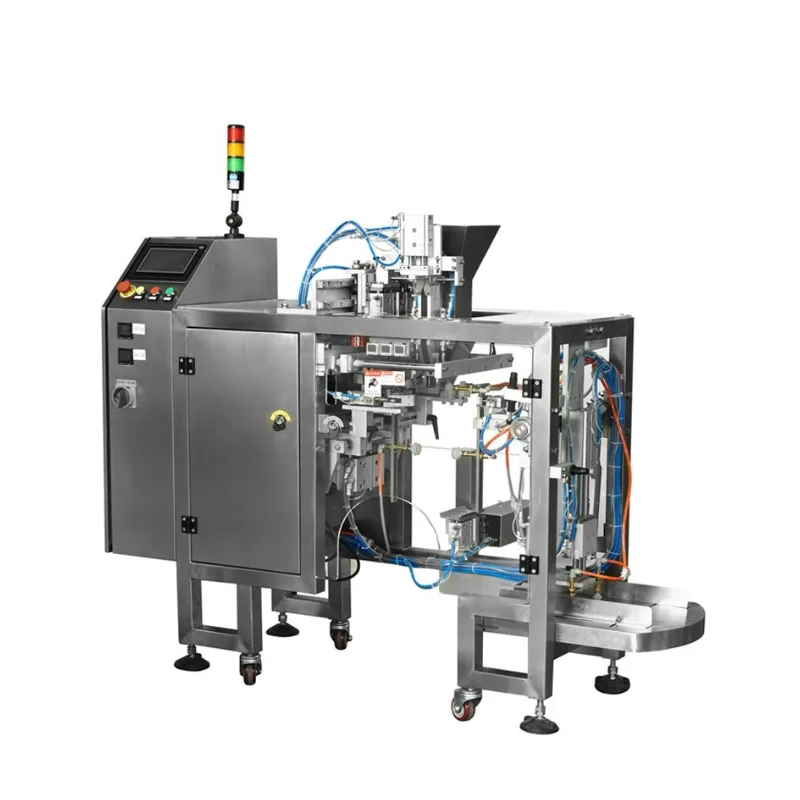

One-Station Doypack Filling & Sealing Machine
The “Fill-n-seal” packaging machine performs multiple tasks to prepare a package for filling. It grabs an empty packet from a bag magazine, opens it, fills it with the desired product, embosses the date, and seals the pouch.
It has an optional orientation feature that can position and feed spouts to the sealing area and seal the spout onto the pouch.
This machine is equipped with parts that allow it to work with packets of different sizes and types of bags. As a result, it can meet most premade packet doypack filling and sealing needs.
- Compact and economical
- Sanitary design with SUS304 for the main body
- Flexible for bags in different types and size
- PLC & 7-inch touch screen for easy operation
- Reduce bag waste. No fill nor seal if the pouch not full open
- Automatic fault diagnosis and prompts
- Safety design: safety door device and alarm function
Suitable for the Mainly Type of Bags
Bag Feeding
Pickup
Open
Fill
Seal
Output
Specifications
Model: YDP-300/450 /650
Bag Width(mm): 100~300/250-450/450-650
Bag Length(mm): 100~350/250-500/450-800
Product Weight: ≤2kg/≤5kg/≤30kg
Max. Speed: 5-10PPM/4-8PPM /3-5PPM
Pouch Type: 3-side seal pouch, standup pouch, zip-lock pouch, flat bottom pouch, gusset pouch, spout pouch
Control System: PLC and 7-inch Touch Screen
Air Pressure: 7.0CFM@80 PSI
Power Supply: AC220V±10% 50Hz(60Hz) 1 Phase
