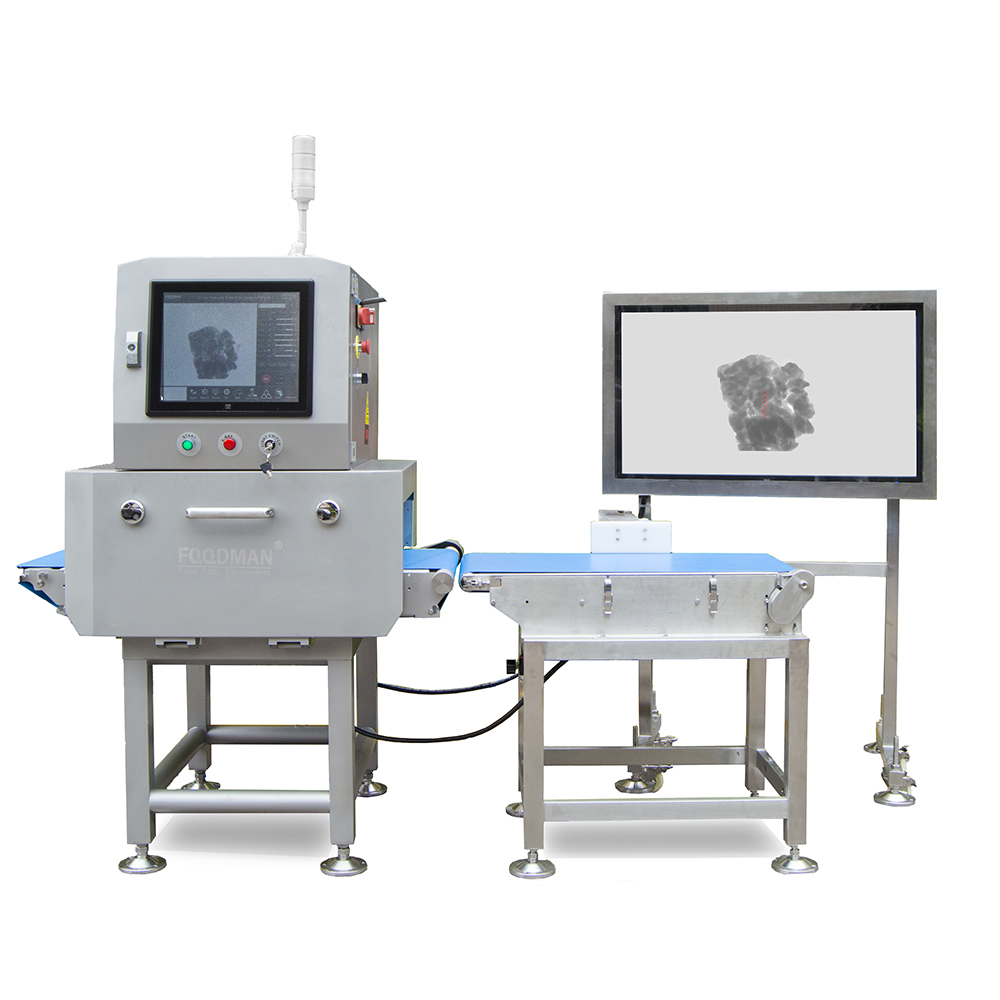

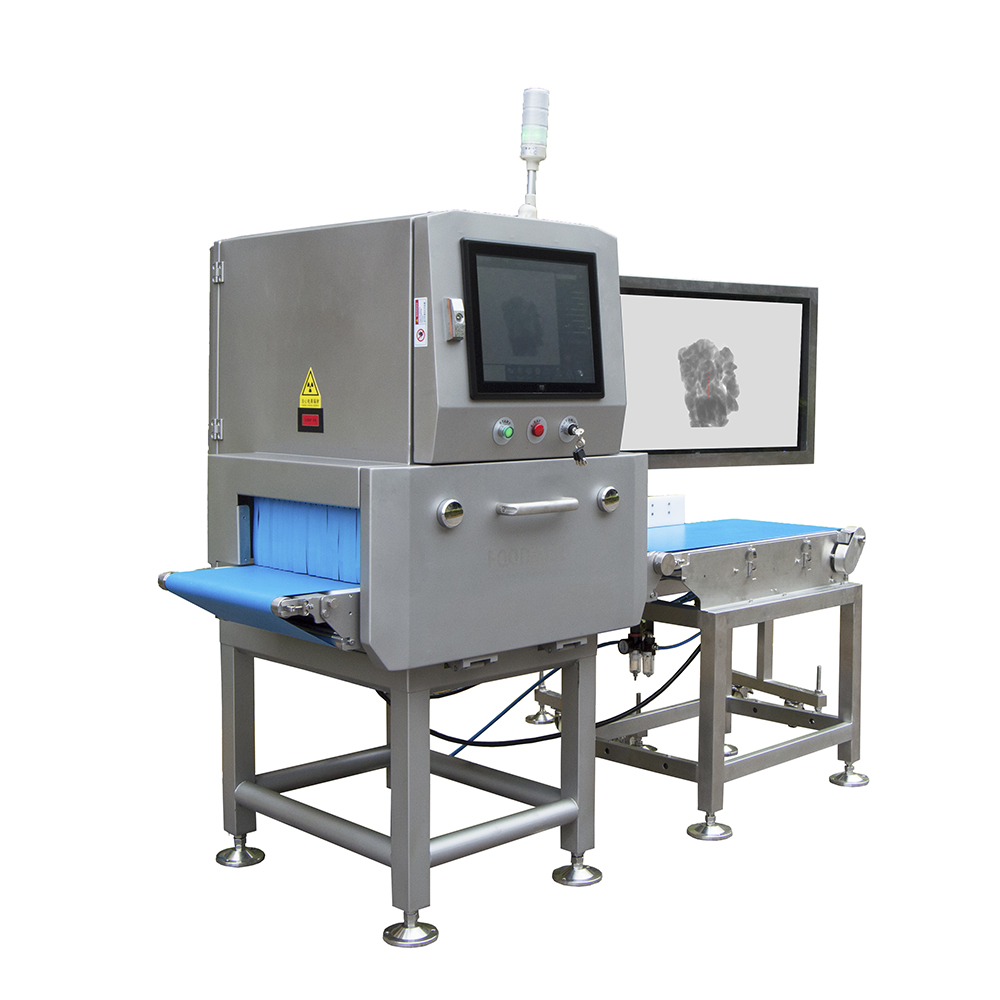

Foodman X-Ray Inspection System for Packaged Products FXR-40/50/60 Series

The X-ray food inspection system uses penetration to select the contaminants, including all kinds of metals (Fe, non-fe, stainless steel), bones, glass, ceramic, stones, sand, rigid plastic, desiccant, etc.

The food x-ray machine is widely used in foreign body detection in Food Packaging, pharmaceuticals, Light Industries, etc.

The food x ray inspectation equipment is suitable for all kinds of packaging products. (Cheese, biscuits, potato chips, infants, seasonings, spices, meatballs and fish balls, meat and poultry, sausages, bagged bar coffee, solid drinks, etc.)

  • User-friendly interface, Pre-installed Windows system
  • More than 300 product presets
  • Leakage less than 1 μSv/h
  • High configuration & stability with well-known components
  • The belt easy to clean, maintain and remove
  • All-in-one solution, customizable

Specifications

Model: FXR-4017K100 | FXR-4017K100 | FXR-6035K100
X-Ray Tube: 40-120KV
Sensitivity: Stainless steel ball Φ0.3mm, Stainless steel wire Φ0.2*2mm, ceramics Φ1.0, glass Φ1.0
Inspection Width: 400mm | 500mm | 600mm
Inspection Height: 170mm | 260mm | 350mm
Conveyor Speed: 10-70m/min

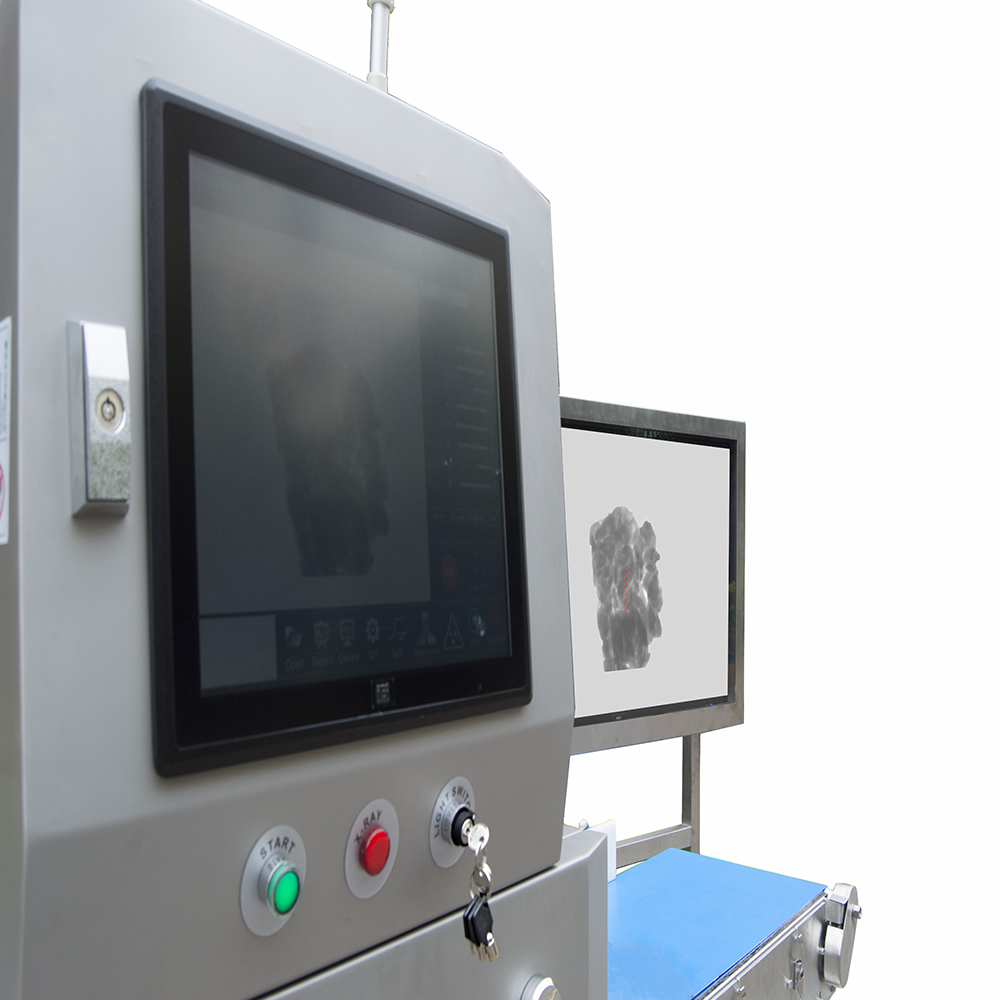

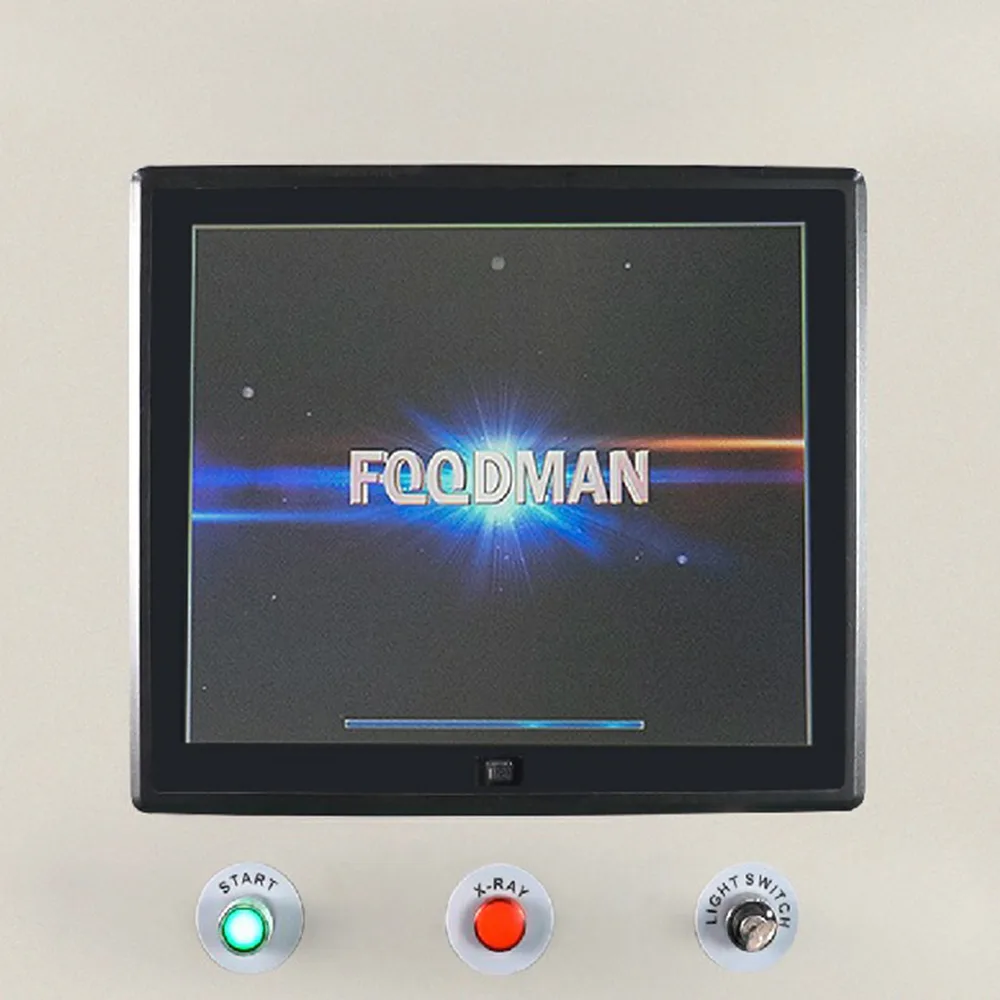

Display Screen: 17 inches coloured touch screen

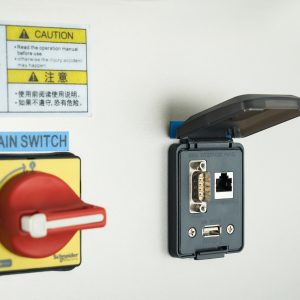

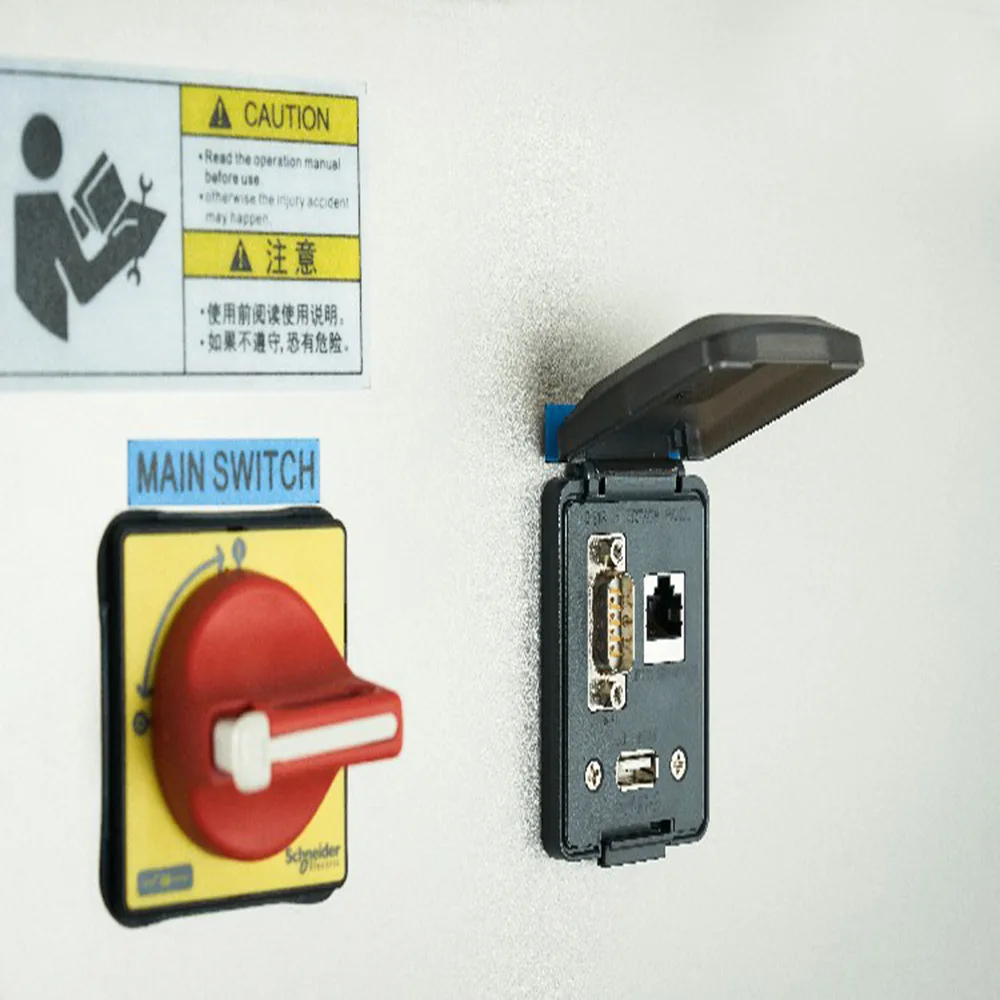

Interfaces: LAN Port, USB Port

Environment: Temperature -10℃-40℃(with on-board air conditioner), Humidity: 30%-90% (equipped with dehumidifier)
X-Ray Leakage: <1μSv/h

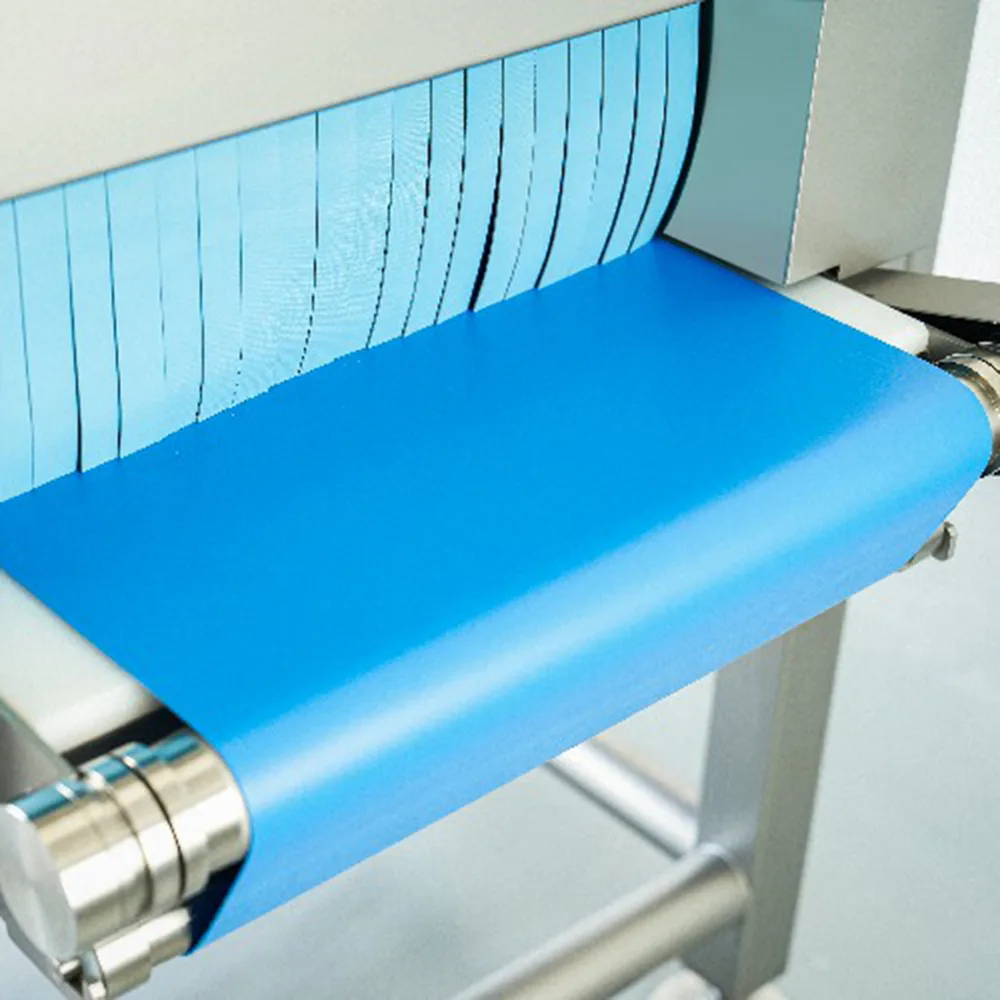

X-ray Protection: Light weight lead-free soft curtains at tunnel
Reaction to Defectives: Optional: Sound and indicator; stopping machine; rejector
Power: AC220V±10% 50Hz(60Hz) 1.5kVA Max
Waterproof Level: IP66
Body Material: Stainless Steel SUS304

Key Features

Shielding function

Users can choose to block the parts that do not need to be detected, such as aluminum film packaging, desiccant, detection object boundary, aluminum buckle, etc.

Defect detection

In addition to foreign object detection, the x-ray inspection system can also detect and count missing items and broken products.

Waterproof and dustproof function

We are the 1st in the industry to separate light source and electrical appliances cabinet. That makes the x-ray inspector more waterproof and convenient for maintenance. Additionally. the detecting tunnel is certified to IP66.

Strong environmental adaptability

With an independent air supply tor light source, the x-ray inspection adapts to various environments, even some extreme environments. The ambient humidity can reach 90%, and the ambient temperature can reach -10~40°C.

Strong air conditioning performance

The circulating pipe cooling system can prevent condensation at low temperatures and cool down at high temperatures. This kind of design can also enhance product life and more stable performance.

Remote Support

In the event of operational problems or machine failures, users can use the built-in software of the fuselage. Our after-sales team can remotely assist in solving the issues and improve efficiency.
