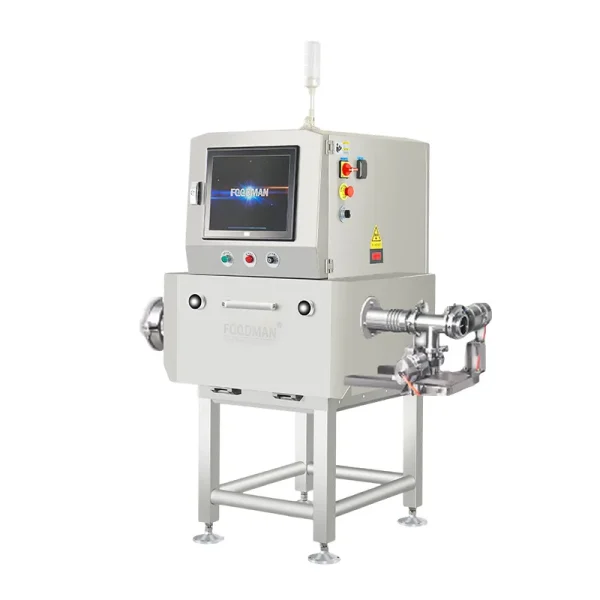

Foodman Pipeline X-Ray Inspection system
The Pipeline X-Ray Inspection System is specifically designed for inspecting muddy, saucy, and liquid products transported through pipelines.
It can accurately detect and remove contaminants such as metal, bone, stone, glass, and high-density materials. With its advanced image processing technology and efficient removal mechanism, the system ensures the safety and compliance of the food production process while minimizing product loss and enhancing production efficiency.
X-ray machines are widely used in the food processing industry, especially for liquid, semi-solid and viscous foods transported by pipeline, such as soups, sauces, jams, minced meat, etc.
- Intelligent Networking and Remote Diagnosis
- Data Management
- Strong Compatibility
- Efficient Rejection System
Specifications
Technical specifications of the Pipeline X-Ray Inspection system for inspecting liquid products.
- Model: FXR-P50/60/80
- X-Ray Tube: 40-100KV
- Pipe Diameter: 50mm/60mm/80mm （Pipe diameter can be customized）
- Working Speed: 30m/min
- Sensitivity:
Stainless Steel Ball Ф0.3mm
Stainless Steel Wire Ф0.3*2 mm
Hard Bone Ф1.5mm
Ceramic Ф1.0mm
Glass Ф1.0mm - Operation: 17-inch colored touch screen, Windows System
- X-Ray Leakage: ＜1μSv per hour
- Transport Direction: Left to Right (Right to left optional)
- Support data interface: LAN Port, USB Port, RS232, Ethernet
- Power Supply: AC220V/110V±10%, 50Hz/60Hz, maximum 1.5KVA
- Rejector: 3-Way Valve rejector
- Waterproof Level: IP69 (Suitable for wet food processing environments)
- Operating Requirement Temperature：-10℃～40℃，Humidity: 30%～95%
- Main Structure: SUS304 Stainless Stee
Key Features
Dual-energy Detection Technology
Dual-energy detection technology effectively identifies and removes low-density, non-metallic foreign objects.
Image Processing software
FIAP Image processing software based on density detection can accurately identify foreign objects such as metals and bones.
Al Product settings
X-ray systems do not need complex adjustments, easy operation, and improved production efficiency.
Dynamic Position Tracking Technology
Dynamic Position Tracking Technology utilizes advanced position tracking methods to accurately eliminate contaminants while minimizing waste and enhancing production efficiency.
Intelligent Image Analysis
Intelligent image analysis employs dual-energy detection technology alongside advanced image processing techniques to enhance the clarity of foreign matter detection and reduce the rate of false alarms.
Designed for Dynamic Environments
The pipeline x-ray system adopts a stainless steel structure, complies with IP69 protection standards, and is ideal for challenging production conditions, including high temperature, high humidity, and high-pressure cleaning.
Intelligent Networking and Remote Diagnosis
Intelligent networking and remote diagnostics enable remote equipment diagnosis and troubleshooting, enhancing maintenance efficiency.
