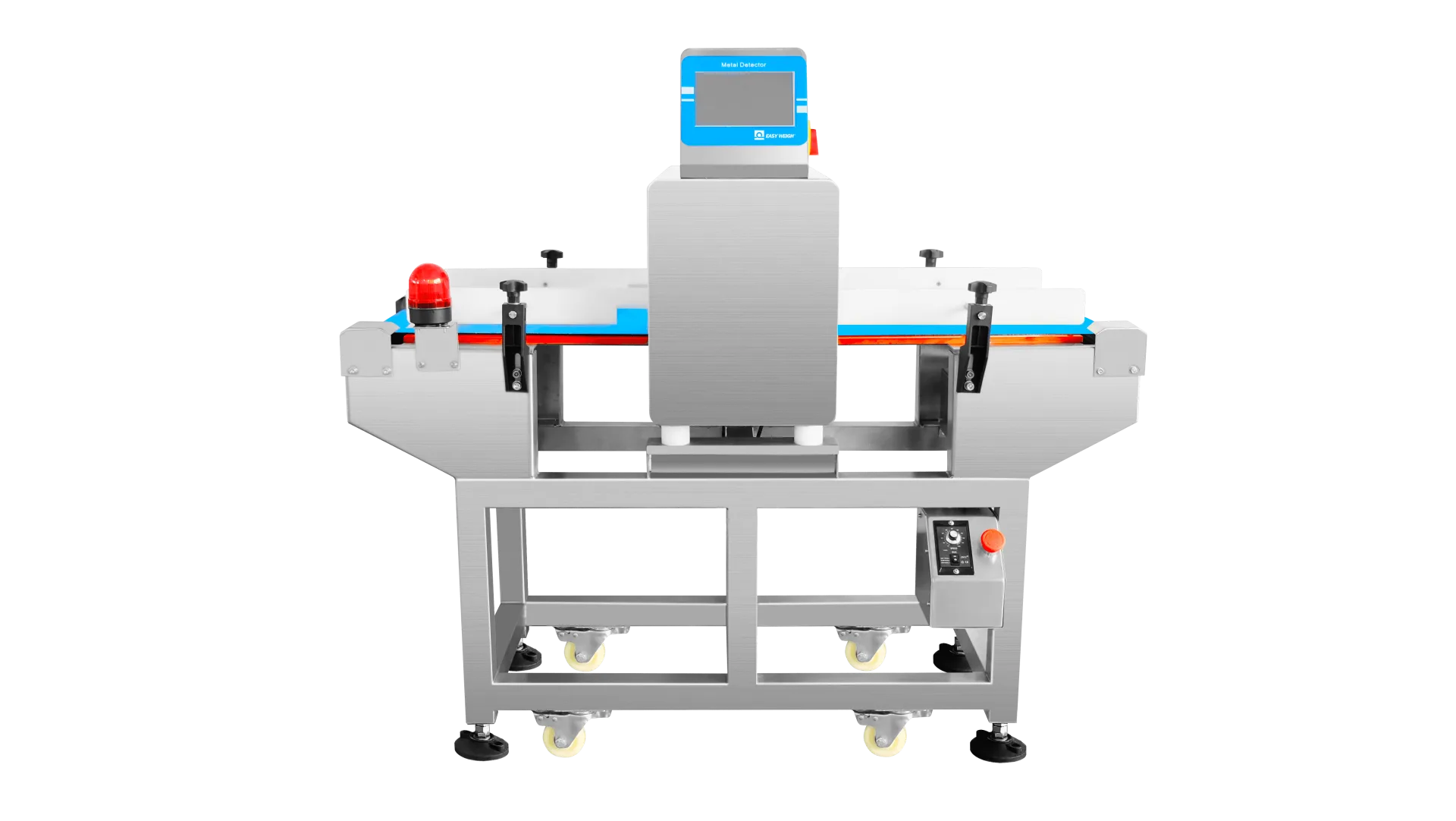

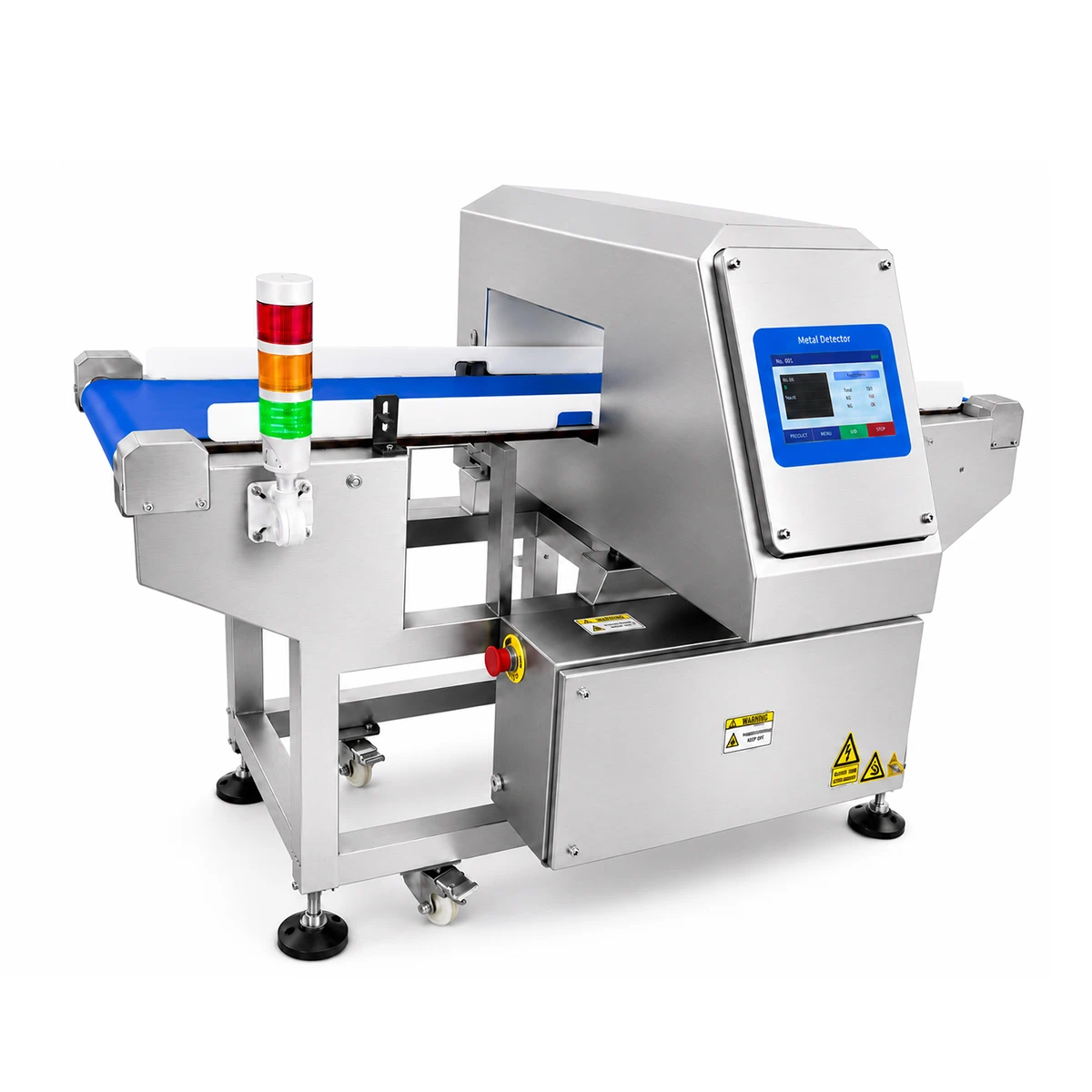

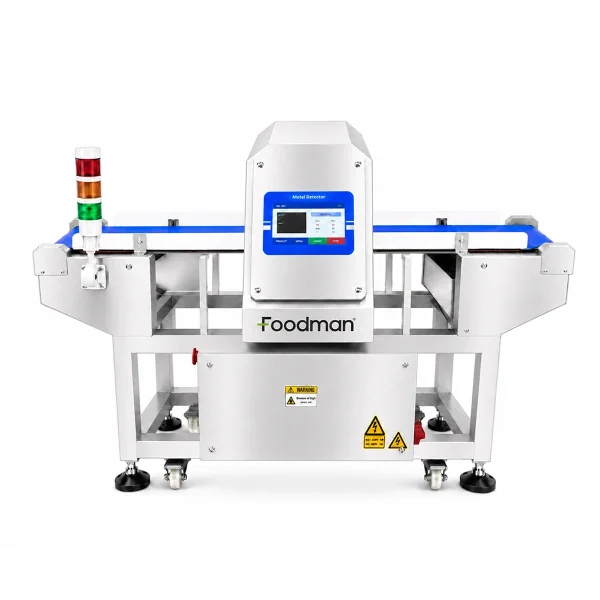

Metal Detector for Aluminum Foil Packaged Products
Designed to meet the unique challenges of detecting contaminants in metalized packaging, Foodman Metal Detector for Aluminum Foil Packaged Products provides an innovative solution for ensuring product safety and quality.
Traditional metal detectors often struggle with foil packaging because metal layers create large signals. Foodman Ferrous-in-foils Metal Detector resolves these issues by using advanced technology to accurately differentiate between packaging materials and actual contaminants, even in dense, foil-wrapped products.
This advanced system is ideal for food and beverage, pharmaceuticals, and consumer goods industries, where products are often wrapped in metalized films or foil for preservation and safety. It works by isolating signals uniquely generated by contaminants, enabling high-sensitivity detection without interference from the packaging.
Key Highlights
- Automatic Calibration for Efficiency
- High-Speed Detection for Increased Productivity
- Robust and Durable Construction
- Customizable Sensitivity Settings
Technical Specifications
Technical specifications for Aluminum Foil Packaged Products Metal Detector
- Model:
FMD-A30
FMD-A40 - By Width(mm):
300mm/300mm;
400mm/400mm - By Height(mm): 100mm/150mm; 100mm/150mm
- Body Length: (Standard length):1000mm
- Transmission Speed: 5-30m/min
- Sensitivity(mm):
FE: 0.8/1.0; 0.8/1.2 SUS304: 1.0/1.5; 1.2/1.5
- Operation: Touch Screen/button
- Power Supply: AC220/110V±10% 50Hz/60Hz
- Alarm: Audible and visual alarm
- Rejector: Multi Rejector Selectable
- Waterproof Level: IP54
- Operating Requirement: Temperature: 0℃～40℃, Humidity:30%～95%
- Main Structure: SUS304 Stainless Steel
Key Features & Benefits
Advanced Signal Filtering Technology
It utilizes a high-sensitivity sensor to differentiate between packaging material and metal contaminants, ensuring precise detection even in aluminum foil packaging.
Fast Detection Speed
It adopts a unique magnetic reflection method, built-in high-sensitivity sensor, and has a fast detection speed.
Customizable Sensitivity Settings
Allows operators to easily adjust sensitivity levels based on the product type and packaging material, optimizing performance and reducing false positives.
Versatile Application
Suitable for various industries, including food and beverage, where products such as coffee, candy, chocolates, and cocoa powder are commonly foil-packaged.
User-Friendly Interface
Equipped with an intuitive control panel for easy operation, calibration, and maintenance.
Easy maintenance
Support software upgrades to facilitate system maintenance.
Industries We Serve
Seafood
Advanced conveyor metal detectors and food metal detector systems ensure effective metal detection in food industry by identifying ferrous, non-ferrous, and stainless contaminants during high-speed fish and seafood processing.
Meat & Poultry
Integrated checkweigher with metal detector and combination metal detection and checkweigher systems enhance metal detection in food processing, ensuring compliance with metal detection standards food industry while improving throughput and accuracy.
Snacks & Bakery
Reliable food metal detection equipment and metal detectors for food packaging ensure product safety by detecting contaminants in finished goods, answering critical concerns like what metals can be detected by a metal detector and maintaining quality standards.
Pharmaceuticals:
Precision metal detector combination system and metal detector for businesses solutions deliver strict contamination control, supporting regulated environments with advanced metal detection methods and validation using metal detector test cards.
Agriculture
High-sensitivity industrial metal detector conveyor and free fall metal detectors support bulk material handling by detecting foreign objects, optimizing metal detection in food production and raw crop safety.
Prepared Foods
Intelligent metal detector food processing and combination checkweigher metal detector systems enable efficient metal detection for detecting metal fragments in food products, ensuring consistent quality and compliance across complex production lines.
